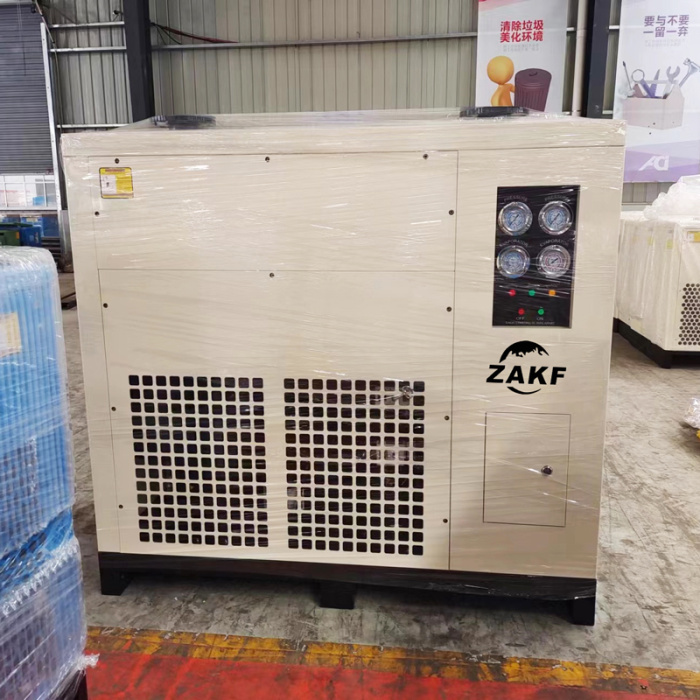

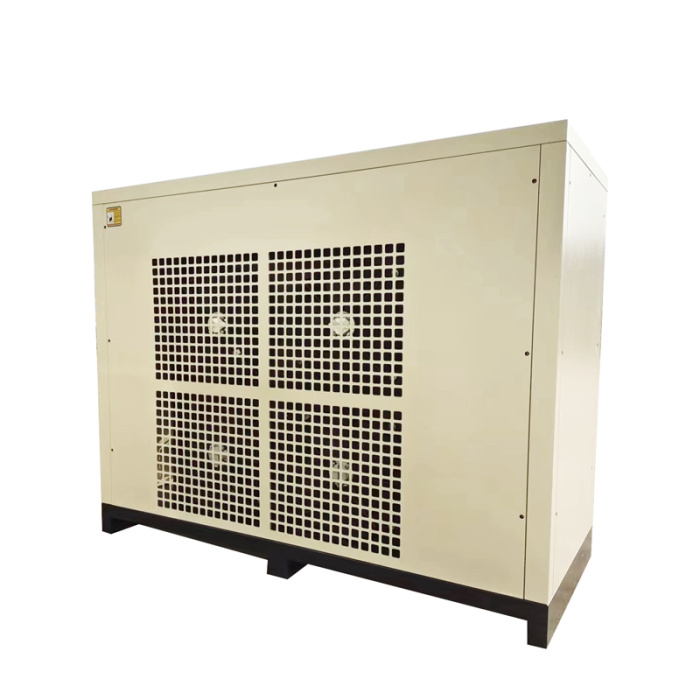

36m3/min refrigerated dryer suitable for countries with high temperatures of 40℃ Celsius

It is a compressed air treatment unit that removes water vapor from compressed air by cooling. The air passes through a refrigeration circuit: it is chilled to a low temperature so moisture condenses into liquid, which is drained away automatically, then the dry air is reheated before discharge. The result is dry compressed air that protects your tools, pipes and processes from corrosion, blockages and product damage.

Compressed air naturally contains water vapor. Without drying, condensation forms in pipes and tools, causing corrosion, blocked valves, frozen lines in winter, contamination of products (paint, food, electronics) and premature failure of pneumatic equipment. Drying is the most cost-effective way to prevent these problems.

A refrigerated dryer typically delivers a pressure dew point of 3–10°C (common standard: +3°C), which is sufficient for most general industrial applications such as pneumatic tools, general automation, spray painting, sandblasting and packaging. If you need lower dew points (−20°C or below), a desiccant dryer is required.

A refrigerated dryer cools the air and achieves +3°C dew point at low running cost, suitable for general use. A desiccant (adsorption) dryer uses desiccant media to reach −20°C to −70°C dew points for demanding processes, but consumes regeneration air (purge loss) and costs more to operate. Many plants combine both: refrigerated first, then desiccant.

Sizing depends on four factors: air flow (m³/min or CFM), working pressure, inlet air temperature, and ambient temperature. Higher inlet or ambient temperature significantly reduces drying capacity, so oversizing is often needed for hot climates or machines without aftercoolers. Send us your compressor details and conditions — we will recommend the correct model.

Our dryers are designed for low pressure drop — typically 0.1–0.2 bar at rated flow — so the impact on system pressure is minimal. Proper installation with adequate pipe size and avoiding restrictions keeps the drop at the guaranteed level.

Condensate is collected in the internal separator and discharged automatically by an electronic or float-type drain valve, so no manual draining is needed in normal operation. An optional condensate management system can separate oil from water for environmentally compliant disposal.

Maintenance is simple and infrequent: periodically clean the condenser fins and fan (dusty sites need more frequent cleaning), check the automatic drain and refrigerant pressures, and replace the pre-filter elements on schedule. Most dryers run for years with a simple annual service kit.

We offer standard units with efficient hermetic compressors and optional variable frequency control (VSD) that matches cooling capacity to actual load, cutting electricity use under partial load. A hot-gas bypass or capacity control further stabilizes performance while saving energy at low demand.

Yes. We recommend a pre-filter (e.g. 1 µm) upstream to protect the dryer from oil and particles, and a post-filter downstream where fine purity is required (e.g. 0.01 µm or activated carbon for food/pharma). We supply complete packages — dryer plus filters and separators — as a turnkey air treatment system.

Installation is simple: place the dryer on a level floor with clearance for ventilation and service, connect it after the air receiver or compressor aftercooler, and provide power and a condensate drain line. We supply a full installation and commissioning manual with every unit.

Standard units are rated for ambient temperatures of roughly 5–45°C. In hot climates, choose a model sized for higher ambient or add a high-temperature version; in cold environments, ensure the drain line cannot freeze. We confirm your site conditions when recommending a model.

Yes. As the manufacturer, we customize voltage/frequency (e.g. 220V/380V/415V, 50/60Hz), control options, drain types, insulation or enclosure, color and branding, plus OEM/ODM with your logo and packaging. We also build complete skid-mounted dry packages with filters, receivers and dryers.

Our factory is ISO 9001 certified, and the dryers carry CE certification, with other certificates available for your destination market (e.g. pressure equipment certification where required). We provide full export documentation with every shipment.

Standard models ship within 7–20 days after order confirmation; customized or larger units take 20–40 days. Units are export-packed in plywood cases or cartons suitable for sea or air freight, with full protection against moisture and shock.

We offer a 12–24 month warranty, 24/7 remote technical support, installation guidance, and long-term spare parts supply — filters, drains, fans and refrigeration components — typically dispatched within 3–7 days to minimize your downtime.
