7m3/min Air Dryer AC-50 - Efficient and reliable compressed air drying solution

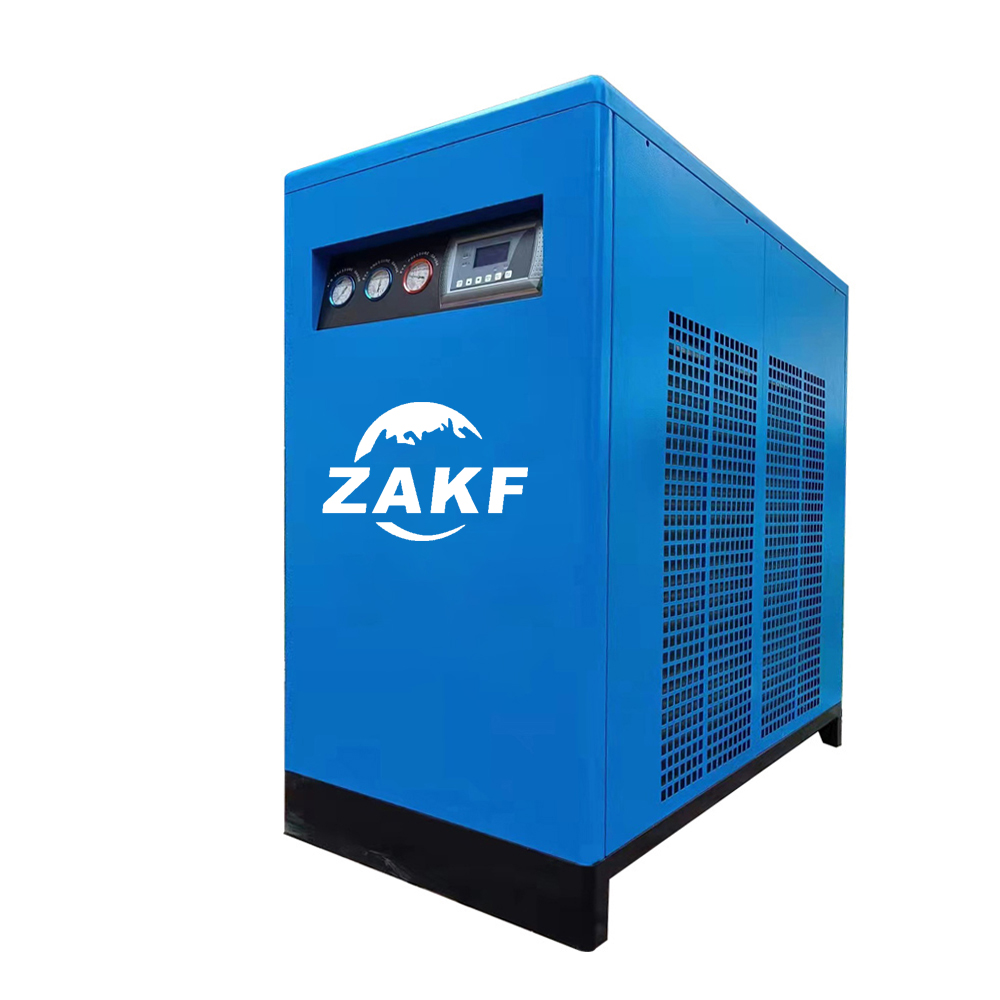

The 7m3/min Air Dryer AC-50 is a high-performance industrial air dryer designed to provide stable and dry compressed air for a variety of applications. With dimensions of 1030*500*890 mm and a weight of 120 kg, the device is durable and easy to integrate into existing compressed air systems. The AC-50 is ideal for both industrial and domestic use, providing a reliable solution for moisture removal from compressed air streams.
The physical dehumidification center of the compressed air purification chain achieves a pressure dew point of 3-10℃ through zero-consumption refrigeration technology, providing the most energy-efficient drying solution for continuous production scenarios.
Refrigerated Air Dryer is a key air source treatment equipment that uses refrigeration technology to remove moisture from compressed air. Its core working principle is:
1. Cool the compressed air to below the dew point temperature through a built-in refrigeration system.
2. Condensate water vapor in the air into liquid water.
3. Effectively separate and discharge liquid water through the separation device.
4. Finally output dry and clean compressed air.
Core advantages: energy saving, reliable and convenient
High efficiency and energy saving:
1. Adopt pure physical cooling and dehydration principle, no adsorbent regeneration process is required.
2. No compressed air is consumed, and compared with adsorption dryers (such as dehumidifiers), 12-15% of compressed air loss can be reduced.
3. The power supply demand of the equipment itself is lower than that of adsorption dryers.
Stable operation and simple maintenance:
1. The structure is relatively simple, the valve parts are less worn, and the long-term operation stability is high.
2. There is no need to regularly replenish or replace adsorbents (such as molecular sieves, activated alumina), which significantly reduces maintenance costs and material consumption.
3. Condensate is discharged through an automatic drainer, and daily maintenance mainly includes daily cleaning of filters.
Strong applicability:
Especially suitable for industrial scenarios with continuous operation.
System linkage: the core of compressed air drying process
The collaborative work of
Adsorption Air Dryer and
Screw Type Compressor is the key link to obtain dry compressed air. The typical compressed air processing process is: air compressor → air storage tank → refrigerated dryer → air-using equipment
The high-temperature and high-humidity compressed air output by the air compressor first enters the air storage tank for buffering and pressure stabilization. Subsequently, the air enters the air inlet of the refrigerated dryer for deep dehumidification. Finally, the dried clean compressed air is supplied to the air-using equipment.
The two need to achieve efficient and stable linkage operation through reasonable pipeline connection, control timing coordination, and parameter matching (such as flow and pressure).
