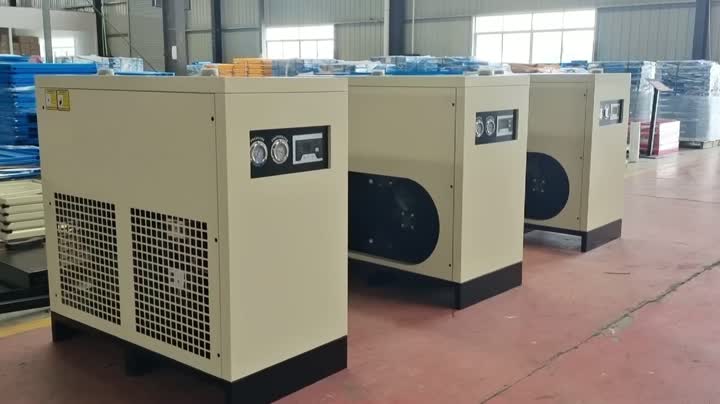

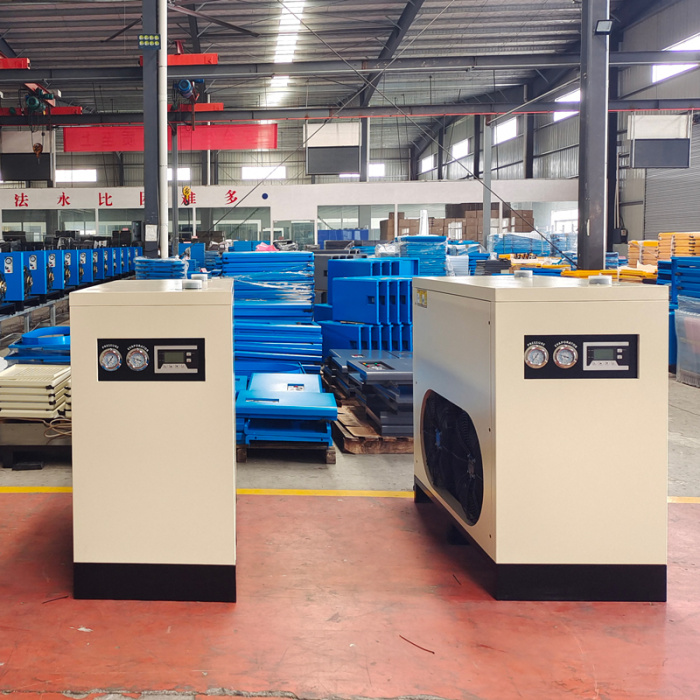

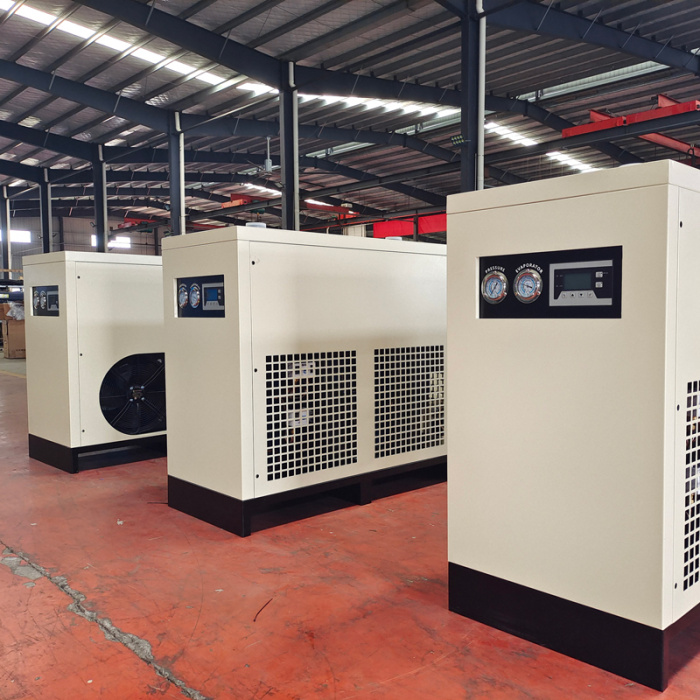

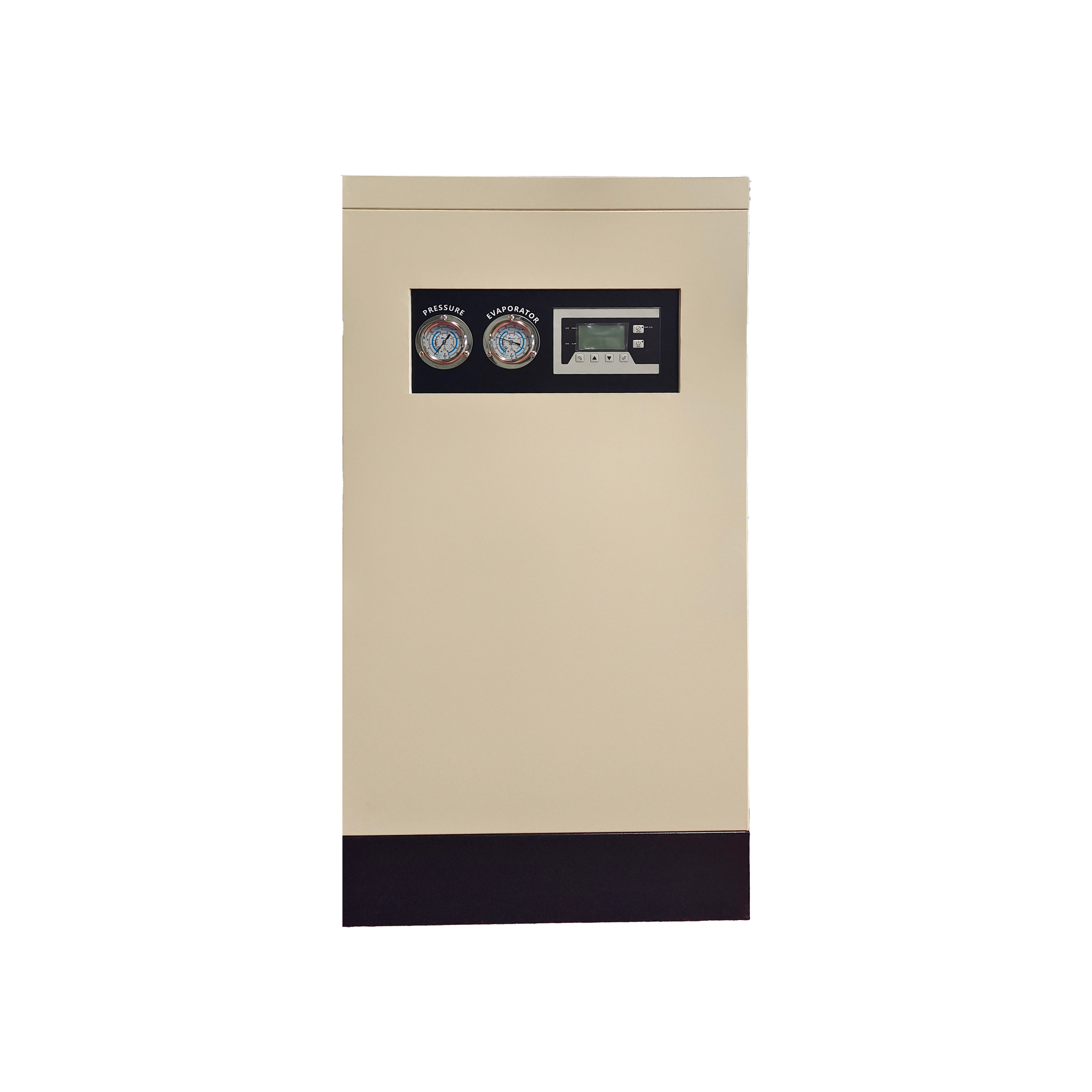

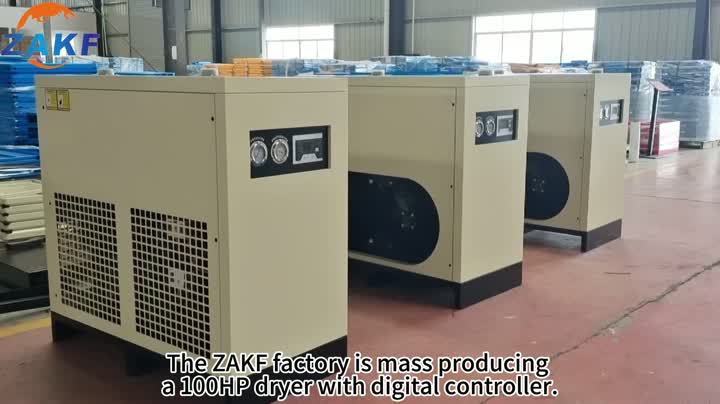

13.5 m3/min refrigerated drying machine with digital display main controller

This 13.5m³/min air-cooled freeze dryer adopts the principle of freezing and dehumidification. Through a high-efficiency system composed of core components such as a refrigeration compressor and condenser, the compressed air is cooled to a pressure dew point of 2-10 ℃, and the moisture is efficiently separated and discharged through an automatic drainage system. Equipped with a digital display controller, it can intuitively display key parameters such as inlet and outlet temperature, condensation temperature, etc. It supports intelligent regulation and fault warning, with convenient operation and accurate monitoring. The equipment is compatible with a working pressure of 0.6-1.0MPa, capable of withstanding an inlet temperature of 60 ℃ and an ambient temperature of 2-35 ℃, with a pressure loss of ≤ 0.02MPa. It uses high-quality accessories and precision design, is stable, durable, and easy to maintain, and can be installed indoors without the need for a dedicated foundation. It is widely used in industries such as mechanical processing, electronics, food, and chemical engineering, providing clean and dry compressed air for large flow air compressors.



This 13.5m³/min refrigerated dryer with a digital display controller is suitable for high flow compressed air processing needs. The digital controller accurately displays operating parameters, intelligently regulates working conditions, and monitors core indicators such as pressure and temperature in real time. It is easy to operate and provides timely fault warnings; An efficient refrigeration system ensures the dryness of compressed air, reduces the risk of corrosion and blockage of gas equipment, and improves the quality of gas sources; The source factory is precision manufactured, stable, durable, and has low maintenance costs. It is widely used in various industries such as mining, mechanical processing, and spraying, and is the preferred choice for high cost-effective drying treatment for large displacement air compressors.



This 13.5m³/min refrigerated dryer with a digital display controller, with its high flow processing capability and precise intelligent control advantages, is widely suitable for the matching needs of large displacement air compressors in various industries such as mining, mechanical processing, spray painting, electronic manufacturing, food processing, chemical production, etc. It can effectively remove moisture from compressed air, avoid moisture corrosion and blockage of pneumatic tools, precision instruments, pipeline valves due to moisture, and ensure stable operation of production equipment and product processing accuracy. It is particularly suitable for continuous operation scenarios with strict requirements for air source dryness.
