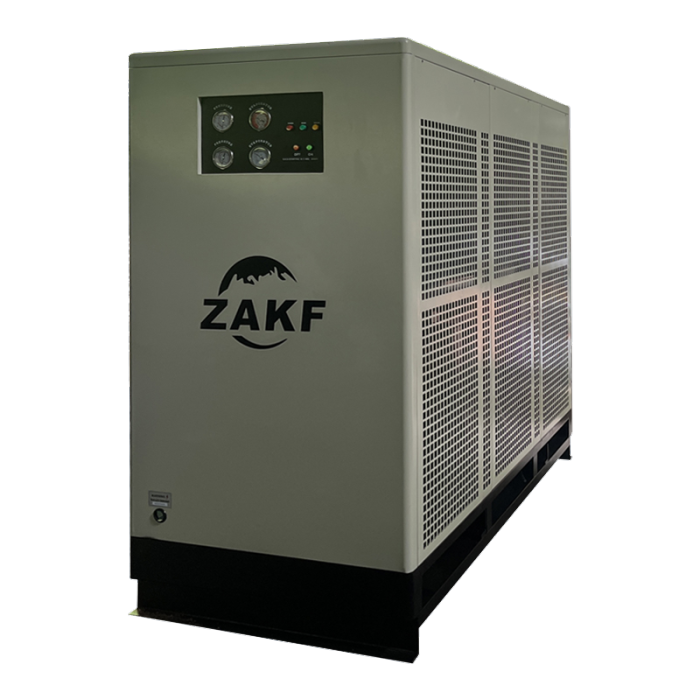

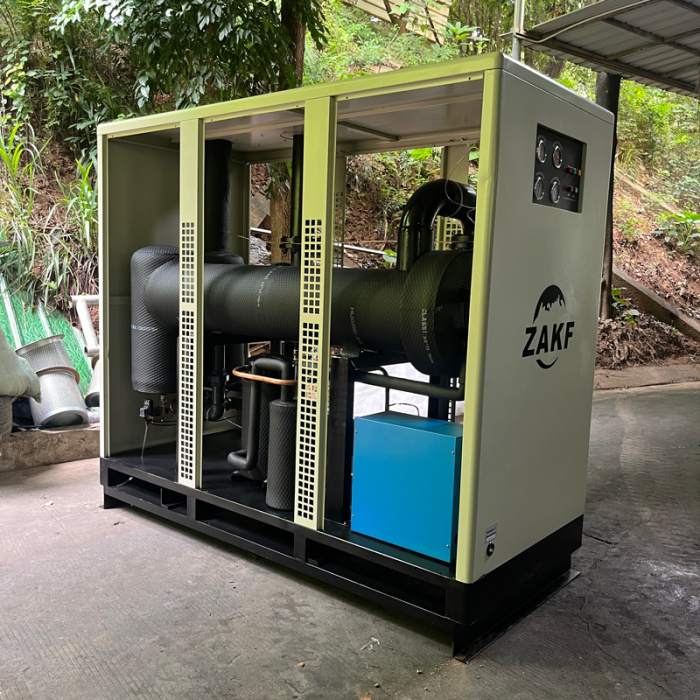

This high-pressure refrigerated dryer with a speed of 40m³/min and a pressure resistance of 45bar is specially designed for high-pressure air compressor systems. It has high flow processing capacity and super pressure resistance performance, which can efficiently remove moisture and oil mist impurities from high-pressure compressed air, stably output low dew point dry air source, avoid condensation, corrosion and equipment failure of high-pressure pipelines, and is widely suitable for high-pressure working conditions such as petroleum exploration, high-pressure pneumatic equipment, precision industry, etc. It is reliable in operation and easy to maintain, and is a high-quality air source purification solution for high-pressure gas scenarios.

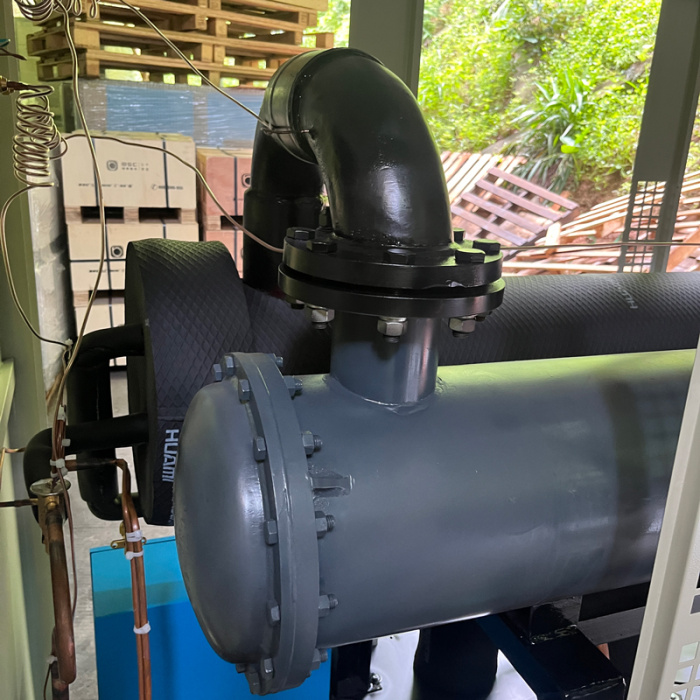

This 40m³/min, pressure resistant 45bar high-pressure refrigerated dryer focuses on high-pressure adaptation and high efficiency stability. It adopts a high-pressure thick wall structure and a 304 stainless steel thickened heat exchanger, ensuring safe and reliable operation at 45bar high pressure. With a large flow optimization design, it meets the industrial gas demand; Equipped with hot gas bypass control and intelligent dew point regulation system, the pressure dew point is stable and avoids ice blockage, efficiently separating moisture and impurities; Equipped with zero loss automatic drainage device and energy-saving vortex compressor, with low pressure loss and energy consumption adapted to load changes, the selection of environmentally friendly refrigerant meets regulatory requirements; The core components have strong durability and easy maintenance, which can effectively avoid pipeline corrosion and equipment failures under high-pressure conditions, greatly reducing operation and maintenance costs.
This high-pressure refrigerated dryer with a speed of 40m³/min and a pressure resistance of 45bar is suitable for high-pressure air compressor systems and is widely used in oil exploration and drilling, high-pressure pneumatic equipment drive, precision component high-pressure air tightness testing, deep-sea operation gas source treatment, military special high-pressure gas use and other harsh high-pressure working conditions. It can efficiently dry gas sources in high-pressure environments, avoid pipeline condensation, equipment corrosion and leakage risks, and ensure stable operation of high-pressure gas systems.
It is a compressed air treatment unit that removes water vapor from compressed air by cooling. The air passes through a refrigeration circuit: it is chilled to a low temperature so moisture condenses into liquid, which is drained away automatically, then the dry air is reheated before discharge. The result is dry compressed air that protects your tools, pipes and processes from corrosion, blockages and product damage.
Q2. Why do I need to dry my compressed air? +
Compressed air naturally contains water vapor. Without drying, condensation forms in pipes and tools, causing corrosion, blocked valves, frozen lines in winter, contamination of products (paint, food, electronics) and premature failure of pneumatic equipment. Drying is the most cost-effective way to prevent these problems.
Q3. What dew point can a refrigerated dryer achieve? +
A refrigerated dryer typically delivers a pressure dew point of 3–10°C (common standard: +3°C), which is sufficient for most general industrial applications such as pneumatic tools, general automation, spray painting, sandblasting and packaging. If you need lower dew points (−20°C or below), a desiccant dryer is required.
Q4. What is the difference between a refrigerated dryer and a desiccant dryer? +
A refrigerated dryer cools the air and achieves +3°C dew point at low running cost, suitable for general use. A desiccant (adsorption) dryer uses desiccant media to reach −20°C to −70°C dew points for demanding processes, but consumes regeneration air (purge loss) and costs more to operate. Many plants combine both: refrigerated first, then desiccant.
Q5. How do I select the right size? +
Sizing depends on four factors: air flow (m³/min or CFM), working pressure, inlet air temperature, and ambient temperature. Higher inlet or ambient temperature significantly reduces drying capacity, so oversizing is often needed for hot climates or machines without aftercoolers. Send us your compressor details and conditions — we will recommend the correct model.
Q6. How much pressure drop does it add? +
Our dryers are designed for low pressure drop — typically 0.1–0.2 bar at rated flow — so the impact on system pressure is minimal. Proper installation with adequate pipe size and avoiding restrictions keeps the drop at the guaranteed level.
Q7. What about condensate and drainage? +

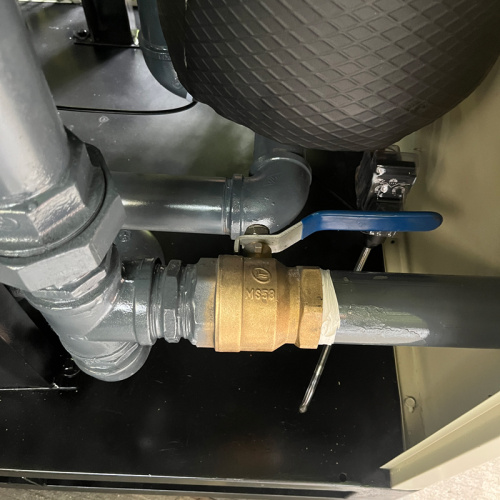

Condensate is collected in the internal separator and discharged automatically by an electronic or float-type drain valve, so no manual draining is needed in normal operation. An optional condensate management system can separate oil from water for environmentally compliant disposal.
Q8. What maintenance does it require? +
Maintenance is simple and infrequent: periodically clean the condenser fins and fan (dusty sites need more frequent cleaning), check the automatic drain and refrigerant pressures, and replace the pre-filter elements on schedule. Most dryers run for years with a simple annual service kit.
Q9. How energy efficient is it? +
We offer standard units with efficient hermetic compressors and optional variable frequency control (VSD) that matches cooling capacity to actual load, cutting electricity use under partial load. A hot-gas bypass or capacity control further stabilizes performance while saving energy at low demand.
Q10. Do I still need filters with a dryer? +
Yes. We recommend a pre-filter (e.g. 1 µm) upstream to protect the dryer from oil and particles, and a post-filter downstream where fine purity is required (e.g. 0.01 µm or activated carbon for food/pharma). We supply complete packages — dryer plus filters and separators — as a turnkey air treatment system.
Q11. What are the installation requirements? +
Installation is simple: place the dryer on a level floor with clearance for ventilation and service, connect it after the air receiver or compressor aftercooler, and provide power and a condensate drain line. We supply a full installation and commissioning manual with every unit.
Q12. Can it work in hot or cold environments? +
Standard units are rated for ambient temperatures of roughly 5–45°C. In hot climates, choose a model sized for higher ambient or add a high-temperature version; in cold environments, ensure the drain line cannot freeze. We confirm your site conditions when recommending a model.
Q13. Do you support customization and OEM/ODM? +
Yes. As the manufacturer, we customize voltage/frequency (e.g. 220V/380V/415V, 50/60Hz), control options, drain types, insulation or enclosure, color and branding, plus OEM/ODM with your logo and packaging. We also build complete skid-mounted dry packages with filters, receivers and dryers.
Q14. What certifications do you hold? +
Our factory is ISO 9001 certified, and the dryers carry CE certification, with other certificates available for your destination market (e.g. pressure equipment certification where required). We provide full export documentation with every shipment.
Q15. What is the lead time and how is it shipped? +
Standard models ship within 7–20 days after order confirmation; customized or larger units take 20–40 days. Units are export-packed in plywood cases or cartons suitable for sea or air freight, with full protection against moisture and shock.
Q16. What warranty and after-sales support do you provide? +
We offer a 12–24 month warranty, 24/7 remote technical support, installation guidance, and long-term spare parts supply — filters, drains, fans and refrigeration components — typically dispatched within 3–7 days to minimize your downtime.
