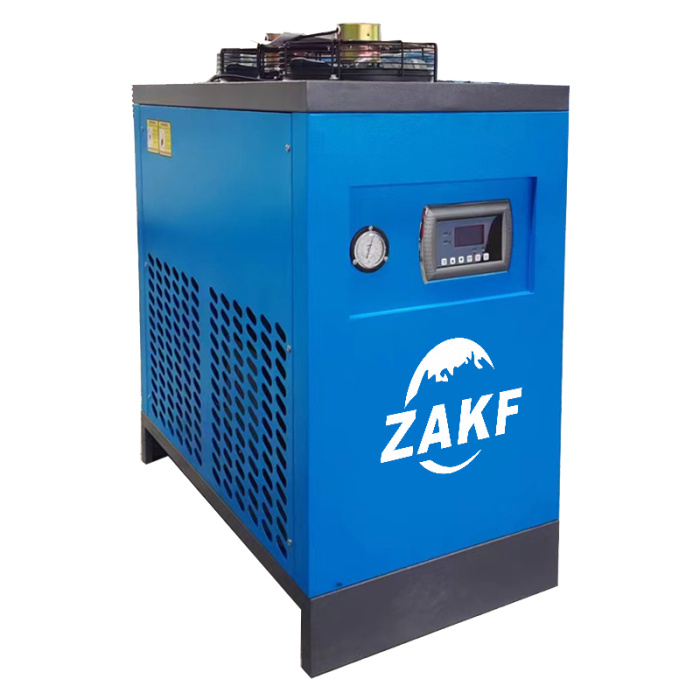

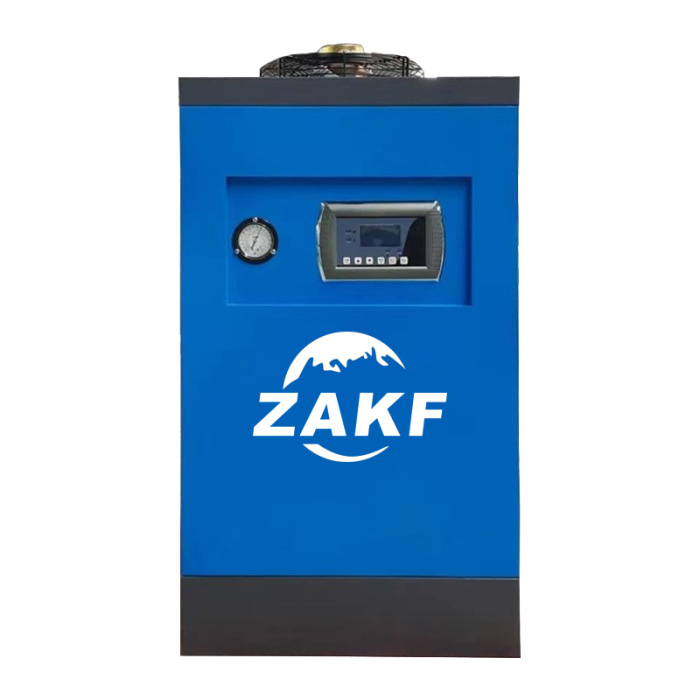

2.5m3/min 80℃ high temperature refrigerated dryer

The 2.5m³/min 80 ℃ high temperature refrigerated dryer is an efficient compressed air drying equipment designed specifically for high temperature conditions. It can process compressed air with an inlet temperature of up to 80 ℃, with a rated processing capacity of 2.5m ³/min. Through the principle of freezing and dehumidification and advanced refrigeration technology, the air is cooled to a dew point temperature of 3-10 ℃, efficiently condensing water vapor and thoroughly separating it through a gas water separator. It is discharged through an automatic drain valve and outputs dry and pure compressed air. The equipment adopts high-quality heat exchange components and environmentally friendly refrigerants, supports air or water cooling methods, and has the characteristics of stable pressure dew point, small pressure loss (≤ 0.03MPa), and strong adaptability to high and low temperature working conditions. It can adapt to intake pressures of 0.2-1.0MPa, has a compact structure, and is easy to install and maintain. It is widely used in industrial scenarios such as manufacturing, chemical industry, and food processing, which can effectively extend the service life of downstream equipment and reduce operating costs.

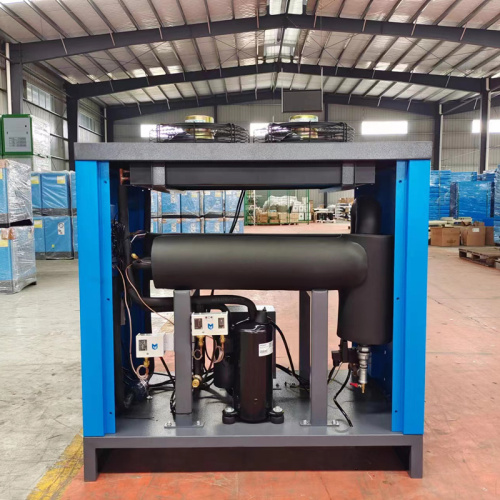

The core selling point of the 2.5m³/min 80 ℃ high-temperature refrigerated dryer is outstanding, which can withstand high inlet temperatures of 80 ℃. Paired with high-quality refrigeration compressors and environmentally friendly refrigerants, the refrigeration efficiency is strong and stable. The condenser adopts 304 stainless steel heat exchange components and an enlarged design, with efficient heat exchange, corrosion resistance and no internal leakage. The pressure loss is ≤ 0.03MPa. Through the hot gas bypass valve and intelligent control, it avoids low-temperature ice blockage and high-temperature tripping, and stably outputs dry air with a dew point of 3-10 ℃. The equipment has a compact structure and is easy to install and maintain. It supports working in conjunction with variable frequency air compressors, combining energy efficiency and long lifespan. It can adapt to high temperature and high humidity conditions in multiple industries and provide reliable protection for downstream equipment.



The 2.5m³/min 80 ℃ high-temperature refrigerated dryer is suitable for high temperature and high humidity industrial conditions, and can efficiently process compressed air with an intake temperature of up to 80 ℃ and a processing capacity of 2.5m ³/min. It is widely used in mining, machinery manufacturing, chemical production, spray coating, food processing and other fields, especially suitable for high exhaust temperature and high environmental humidity of air compressors. It can provide dry and pure compressed air for pneumatic tools, precision instruments, pipeline systems, etc., avoiding equipment corrosion, pipeline blockage, product quality defects and other problems caused by water vapor condensation.



The technical specifications of this air compressor refrigerated dryer are shown in the image below:

Model

Processing capacity (m³/min)

Operating pressure (MPa)

Inlet Temperature

Ambient Temperature

Pressure Dew Point

Cooling Method

Compressor Power

Air Interface

Input Power

Rated Current

Fan Power

Product Dimensions

YZG-10

1.5

≤1.0MPa

≤80°C

≤35℃

2-10°C

风冷

0.6HP/0.52KW

DN25

220V-240V/50HZ

2A

75W

680*480*850

YZG-20

2.5

≤1.0MPa

≤80°C

≤35℃

2-10°C

风冷

0.7HP/0.58KW

DN25

220V-240V/50HZ

3A

90w

680*480*850

YZG-30

3.8

≤1.0MPa

≤80°C

≤35℃

2-10°C

风冷

1HP/0.735KW

DN40

220V-240V/50HZ

5A

90W*2

780*580*1000

YZG-50

6.5

≤1.0MPa

≤80°C

≤35℃

2-10°C

风冷

1.5HP/1.1KW

DN40

220V-240V/50HZ

7A

90W*2

1030*580*1080

YZG-75

10.5

≤1.0MPa

≤80°C

≤35℃

2-10°C

风冷

2.0HP/1.47KW

DN50

220V-240V/50HZ

11A

120W*2

1290*1120*1250

YZG-100

13.5

≤1.0MPa

≤80°C

≤35℃

2-10°C

风冷

3.0HP/2.2KW

DN50

380V/50HZ

8A

120W*2

1290*1120*1250
