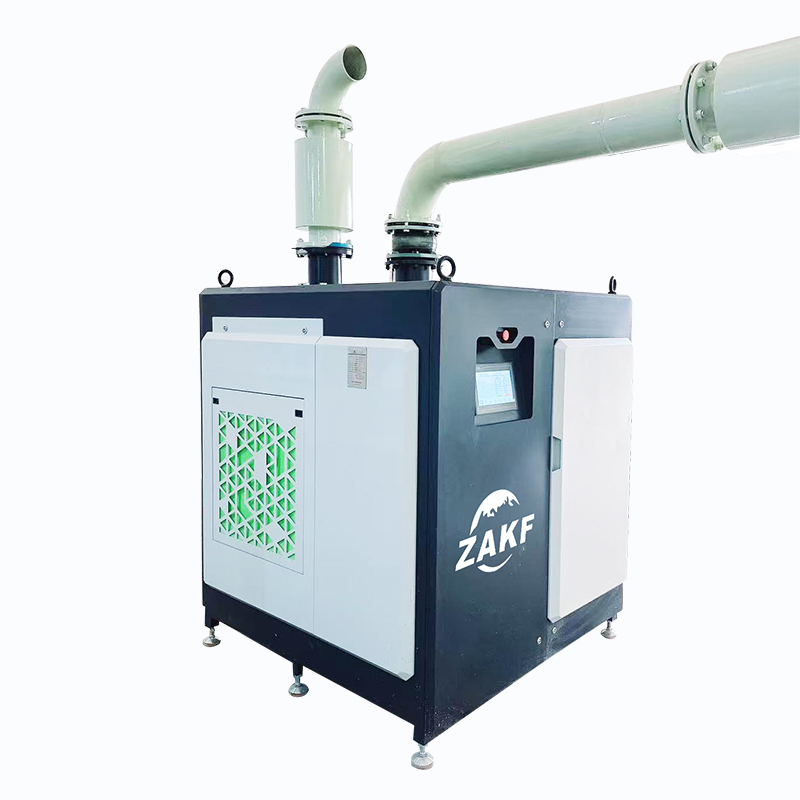

The Magnetic Levitation
Centrifugal Blower is an advanced gas conveying device. It employs magnetic levitation bearings, a high-speed permanent magnet synchronous motor, and an intelligent control system. Utilizing electromagnetic force, it achieves non-contact levitation and high-speed rotation of the rotor (up to tens of thousands of revolutions per minute). Combined with a highly efficient three-flow impeller design, it achieves frictionless and lubrication-free energy-saving operation. Its core advantages include: energy saving (20%–40% more energy-efficient than traditional blowers), low noise (typically <80dB), long lifespan (design life exceeding 15 years), and maintenance-free operation (no lubrication system required). Typical airflow ranges from 10 to 200 m³/min, pressure ranges from tens of kPa to hundreds of kPa, and power ranges from tens of kW to hundreds of kW. It is widely used in wastewater treatment, chemical, power, and food processing industries, and is particularly suitable for applications with strict requirements for cleanliness, noise, and energy consumption.
The core selling point of the magnetic levitation blower lies in its revolutionary magnetic levitation bearing technology, which uses electromagnetic force to achieve non-contact levitation and high-speed rotation of the rotor (up to 20,000 to 50,000 revolutions per minute). Combining a highly efficient three-flow impeller design, it significantly improves energy efficiency (saving 20% to 40% energy compared to traditional fans) and boasts advantages such as ultra-low noise (<80 decibels), lubrication-free maintenance (no mechanical friction loss), and an ultra-long service life (designed life of 15-20 years). Furthermore, the
Centrifugal Fan supports intelligent adjustment, adapting to different operating conditions, and is particularly suitable for industrial scenarios with stringent requirements for energy consumption, cleanliness, and noise control, such as wastewater treatment, chemical, food, and pharmaceutical industries.
Magnetic levitation blowers feature frictionless and highly energy-efficient technology, and are widely used in wastewater treatment (saving 40% energy in aeration processes and eliminating oil pollution), chemical industry (corrosive gas transportation and reactor gas supply), food and pharmaceutical industry (clean air supply and bio-fermentation), electronics manufacturing (cleanroom airflow control), as well as flue gas treatment and aquaculture. Industrial Centrifugal Fans are particularly suitable for industrial scenarios with stringent requirements for energy consumption, noise, and cleanliness. Typical applications include energy-saving retrofits of municipal wastewater treatment plants and oxygen supply for biopharmaceutical fermentation. Magnetic levitation blowers can significantly reduce operating costs (e.g., saving 350,000 kWh per year under certain conditions) and improve process stability.
Q1. What is a magnetic levitation centrifugal blower and how does it work? +
It is a high-speed centrifugal blower whose rotor is suspended and driven by active magnetic bearings and a permanent magnet motor, with no mechanical contact in the rotating system. Air enters axially and is accelerated by the high-speed impeller to deliver large volumes of low-pressure air efficiently and quietly, with output precisely regulated by a variable speed drive.
Q2. How is it different from a traditional Roots (twin-lobe) blower? +
Roots blowers are positive-displacement machines with fixed output and poor efficiency at partial load, plus oil-lubricated gears and bearings that require regular maintenance. Magnetic levitation centrifugal blowers run contact-free, regulate output smoothly from 45% to 100%, and typically consume 30–50% less energy — the largest single cost saving in aeration applications.
Q3. What are the advantages of magnetic bearings? +
The rotor levitates and rotates without touching the stator, so there is zero mechanical wear, no lubricating oil, no gears and no bearing replacement for the machine's life. Bearings are actively controlled, enabling extremely high rotational speed with very low vibration and long, reliable service life.
Q4. What pressure and flow range do you cover? +
Our magnetic levitation centrifugal blowers typically deliver discharge pressures from 30 to 120 kPa (0.3–1.2 bar) with flows ranging from about 20 to 300 m³/min, covering most aeration and pneumatic conveying duties. Send us your required flow, pressure and site conditions and we will match the optimum model.
Q5. Which applications is it best suited for? +
It is ideal for continuous, large-volume low-pressure air: municipal and industrial wastewater aeration, aquaculture oxygenation, pneumatic conveying, desulfurization (flue gas), cement and chemical plants, food fermentation, textile and mining. Anywhere aeration or air blowing runs many hours a day, it delivers the lowest total cost of ownership.
Q6. How much energy can I save? +
Compared with a conventional Roots blower, typical energy savings are 30–50%, driven by high-efficiency motors, the aero efficiency of the impeller and precise variable speed regulation that matches air flow to real demand. For aeration plants running 24/7, the annual electricity saving often reaches tens of thousands of dollars and pays back the equipment difference within 1–3 years.
Q7. How noisy is it? +
Very quiet for its capacity — typically 70–85 dB(A) at 1 m with the standard acoustic enclosure, and much lower than Roots blowers. Low vibration means no special soundproofing room or heavy foundation is required; it can be installed indoors or outdoors.
Q8. What maintenance does it require? +
Almost none. There is no oil, no gearbox and no mechanical bearing wear. Routine work is limited to replacing the intake air filter, cleaning the cooler and periodic system checks. This cuts consumables, labor and downtime dramatically over the machine's lifetime.
Q9. How does the intelligent control system work? +
Each unit has a PLC + touchscreen controller offering auto start/stop, pressure or flow control, multi-unit load balancing, fault self-diagnosis and data logging. Optional cloud remote monitoring lets operators or our engineers view real-time status, energy use and alarms from anywhere, enabling predictive maintenance.
Q10. What is the flow turndown range? +
The variable speed drive provides smooth regulation from 45% to 100% of rated flow without surge or wasteful blow-off. In multi-unit stations, the controller automatically sequences machines so the whole system always runs at its best efficiency point.
Q11. What are the installation requirements? +
Installation is simple: a level platform or concrete pad with adequate clearance, a power connection and an air outlet duct. Because vibration is minimal, expensive anti-vibration foundations are not needed. We supply installation drawings, manuals and remote commissioning support.
Q12. Can it operate outdoors or in harsh environments? +
Yes. Outdoor and high-protection (IP54/IP55) versions are available, with an operating ambient range of roughly −10°C to 45°C and optional cooling packages for tropical, dusty or corrosive sites. We confirm site conditions and configure the right protection grade.
Q13. Can multiple blowers work in parallel? +
Yes. Our control system supports multi-unit stations with automatic load sharing, rotation and failure takeover, so aeration keeps running even if one unit needs service. Integration with existing SCADA/PLC systems and cloud platforms is available.
Q14. What is the typical payback period? +
Thanks to energy savings and near-zero maintenance, payback is typically 1–3 years depending on operating hours, electricity price and the technology being replaced. We provide a free site-specific energy audit and payback calculation before you decide.
Q15. Do you support customization and OEM/ODM? +
Yes. As the manufacturer, we customize voltage/frequency (e.g. 380V/660V/10kV, 50/60Hz), control and communication protocols, cooling options, skid-mounted packages and enclosure types, plus OEM/ODM branding. We also engineer complete aeration systems with piping and diffusers.
Q16. What certifications and after-sales support do you provide? +
Our factory is ISO 9001 certified, and the blowers carry CE certification with additional certificates available for your market. We offer a 12–24 month warranty, 24/7 remote diagnostics and support, installation and commissioning guidance, operator training, and long-term spare parts supply (typically dispatched within 3–7 days).
