Understanding electrical wire colours and proper wiring practices is crucial for safety and compliance when installing industrial equipment like an air compressor in Canada.
Part 1: Canadian Electrical Wire Colour Codes (AC Power)
The standard for wiring colours in Canada is harmonized with the United States under the Canadian Electrical Code (CEC).
Line (Hot) Wires: Carry the electrical voltage from the panel to the device.
Black, Red, Blue: These are the most common colours for hot wires in a power circuit.
In a single-phase system, you will typically see Black.
In a three-phase system, you will see Black, Red, and Blue.
Neutral Wire: Completes the circuit and carries current back to the panel.
White or Grey: The neutral wire is always identified by one of these two colours.
Ground (Earth) Wire: A critical safety wire that provides a path for fault current to earth, preventing electric shock.
Green, or Green with a Yellow Stripe: This is the standard for equipment grounding. Bare copper wires are also used for grounding.

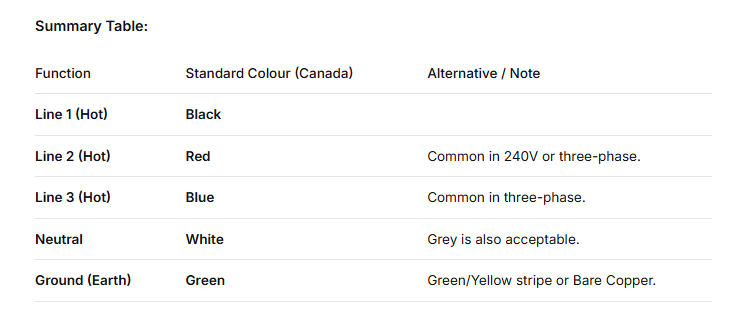

Summary Table:
Crucial Safety Note: The colours listed above are the standard, but you should ALWAYS verify with a multimeter or consult a qualified electrician. Older installations or modified circuits may not follow these standards exactly.
Part 2: Air Compressor Wiring Connection Guide
Connecting a powerful machine like a 37KW ZAKF air compressor is not a DIY task. It requires a licensed electrician to ensure safety and compliance with the CEC.
Key Steps and Considerations:
1. Power Requirements:
A 37KW compressor is a high-power industrial machine.
Voltage: It will typically require a three-phase power supply, common in Canadian industrial settings (e.g., 208V, 240V, or 600V).
Current: At 37KW, the full-load current will be significant (e.g., ~100 Amps at 240V 3-phase). The wiring and circuit protection must be sized correctly for this load.
2. Disconnect and Circuit Protection:
A dedicated safety disconnect switch or circuit breaker must be installed within sight of the compressor. This allows for quick power shutdown for maintenance or in an emergency.
3. Cable and Conduit:
An electrician will select the correct cable gauge (e.g., 3 AWG or larger, depending on distance and voltage) and type (e.g., TECK90 cable or wires in conduit) rated for the current and the industrial environment.
4. Termination at the Compressor Motor:
The compressor's motor terminal box will have clear markings (L1, L2, L3, Ground).
The electrician will connect:
Black (L1) to terminal L1
Red (L2) to terminal L2
Blue (L3) to terminal L3
Green (Ground) to the designated grounding terminal.
Note: If the compressor control system requires a neutral (e.g., for a 120V control circuit), the White wire would be connected as per the manufacturer's diagram.

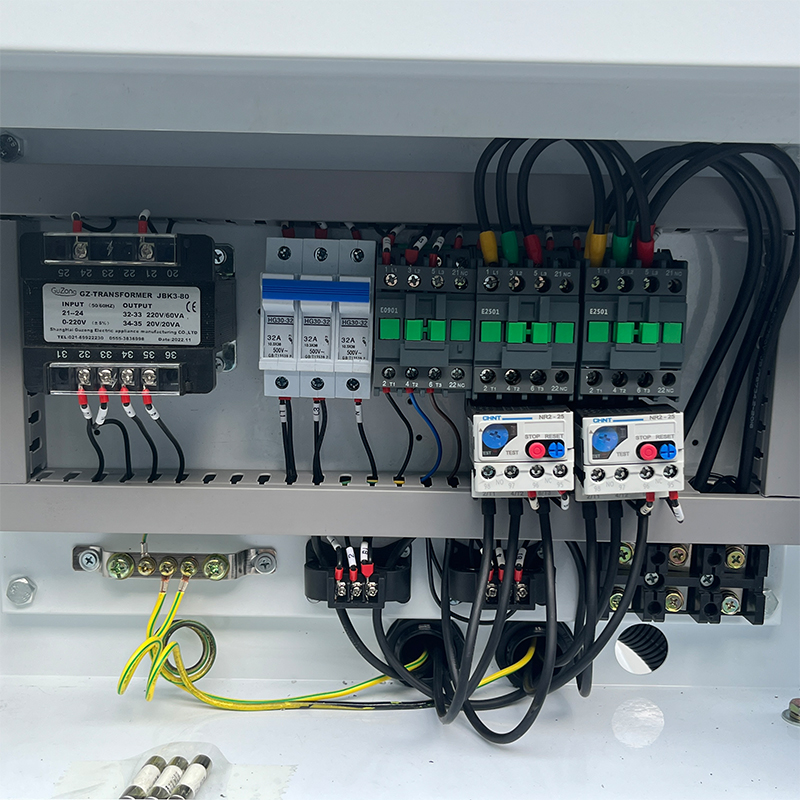

5. Motor Starter & Overload Protection:
Industrial compressors use a magnetic motor starter with overload relays. This device protects the motor from burning out due to excessive current or voltage imbalance.
Summary of Best Practices:
Hire a Licensed Electrician: This is not optional. Improper wiring can cause fire, equipment damage, or fatal electrocution.
Follow the CEC: All work must comply with the Canadian Electrical Code and local regulations, which may require an inspection.
Use the Manufacturer's Diagram: The wiring schematic provided by ZAKF is the final authority for connecting their specific compressor model.
Verify Voltage and Phase: Before installation, confirm that your facility's electrical service matches the compressor's requirements (e.g., 240V 3-Phase).
By understanding the colour codes and the complexity involved, you can ensure that your air compressor is installed safely, efficiently, and in full compliance with Canadian standards.
