Many compressed-air users face the same problem: the compressor must deliver steady air, while energy use, service work, and operating costs stay under control. A 30 HP fixed-speed compressor often fits this need well, especially in plants with a stable air demand.
I have seen buyers focus only on motor size. That can lead to an unsuitable choice. The better question is simple: how does the factory use compressed air during a normal production day?

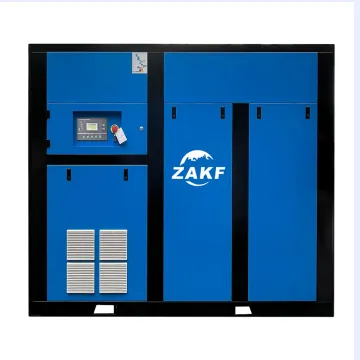

A 30 HP fixed-speed compressor may be a practical option when the demand remains fairly consistent.
Stable Air Demand Supports Simple Operation
A fixed-speed compressor runs at a set motor speed. It loads when the system needs air and unloads when the receiver reaches the set pressure.
This design suits many workshops and production lines that use air throughout the day. Examples include:
- Metal cutting and forming
- Small CNC workshops
- Packaging equipment
- Auto repair facilities
- Textile machinery
- General assembly lines
- Pneumatic tools used on a regular schedule
When air demand changes only a little, a fixed-speed unit does not need to adjust its motor speed many times. The control system can remain easier to understand, which helps operators manage daily production.
I often ask users to check their air-demand pattern before choosing equipment. If the plant consumes 80% to 100% of the compressor’s output for most of the shift, a fixed-speed model may match the working condition better than a variable-speed unit.
A 30 HP Size Fits Many Medium-Scale Applications
Thirty horsepower equals about 22 kW of motor power. The actual air delivery depends on pressure, compressor design, cooling method, and manufacturer settings, so buyers should compare the rated flow at the required working pressure.
For a small or medium factory, this size can offer a useful balance. It may provide enough air for several pneumatic tools without taking up the space required by a larger industrial system.
A workshop producing metal parts, for example, may run air grinders, cleaning guns, and clamping equipment during most operating hours. The total demand can remain steady, even when individual tools start and stop. A properly selected 30 HP compressor can serve this type of system when the receiver tank, piping, and pressure settings are also matched to the load.
Oversizing can create its own problems. A unit that is much larger than the actual demand may spend more time unloading. That can reduce operating efficiency and make the purchase harder to justify.
The Control System Is Easier to Maintain
Fixed-speed compressors usually have a straightforward operating structure. The main components may include:
- A motor
- An air end
- Intake and discharge valves
- Oil filters or air filters
- A pressure controller
- A cooling system
- A control panel
Technicians who already work with standard rotary screw compressors often understand this layout. Troubleshooting can be more direct because the motor does not rely on a variable-frequency drive for speed changes.
This does not mean maintenance can be ignored. The compressor still needs suitable lubrication, clean filters, proper ventilation, and scheduled inspection. A simple design reduces some control complexity, but it does not remove the need for care.
Purchase Cost Can Be Easier to Manage
A fixed-speed compressor may have a lower purchase cost than a variable-speed model with the same motor rating. The final price still depends on the air end, tank size, dryer, filtration, controller, enclosure, and local service support.
For a company with a stable air load, paying more for speed control may not provide enough operating value. I prefer to look at the full usage pattern rather than selecting a feature because it sounds advanced.
A buyer should collect:
- Required working pressure
- Average air consumption
- Peak air consumption
- Daily operating hours
- Available electrical supply
- Room temperature and ventilation
- Service access and spare-part support
These details give a clearer basis for comparison.
Service Access Matters in Daily Production
A compressor affects more than air pressure. If it stops, tools and production equipment may also stop. A model with familiar parts and accessible service points can help technicians complete routine work with less disruption.
For example, a packaging workshop may depend on pneumatic cylinders every working day. A blocked intake filter, poor ventilation, or low oil level can affect compressor performance. Regular inspection helps the operator identify these problems before they create wider production trouble.
I also recommend checking the supplier’s service process before purchase. Ask about filter availability, oil specifications, warranty terms, and technician support. A suitable compressor is not only the machine on the floor. It is also the support system behind it.
Fixed-Speed Is Not Suitable for Every Factory
A fixed-speed compressor may not be the right choice when air demand changes sharply. A plant with long idle periods, short bursts of high consumption, and large shifts in production may need a variable-speed system or a combination of compressors.
A variable-speed compressor can adjust motor speed as demand changes. This may help reduce wasted running in systems with a wide load range. Its value depends on actual operating data, electricity rates, maintenance needs, and purchase cost.
Some factories use a fixed-speed compressor as the base-load unit and add a variable-speed compressor for changing demand. The correct arrangement depends on the site, not on the label attached to the equipment.
A Practical Selection Method
I use a simple process when reviewing a 30 HP compressor:
- Measure air demand during several normal production periods.
- Check the required pressure at the equipment, not only at the compressor outlet.
- Review pipe size, leaks, filters, and dryer pressure loss.
- Compare rated flow at the same pressure.
- Confirm the motor voltage and electrical protection.
- Leave suitable ventilation space around the unit.
- Review service intervals and replacement parts.
- Compare total operating needs, not only the purchase price.
A 30 HP fixed-speed compressor can be a sensible choice when the air load is steady, the pressure requirement is known, and the equipment receives regular service. It gives users a familiar operating method and may reduce unnecessary system complexity.
The best selection is not always the machine with the most control features. It is the machine that matches the factory’s actual air demand, working hours, service ability, and budget.
A variable-speed HVAC system can sound like the better choice because it adjusts its output instead of running at one fixed level. I understand the appeal. The system may run quietly, maintain a steadier indoor temperature, and use less energy during mild weather.
That does not mean variable speed fits every home or building.
I have seen buyers focus on the motor type and overlook the rest of the system. Ductwork, insulation, climate, maintenance, control settings, and equipment size all affect the result. A variable-speed unit installed in the wrong conditions may cost more without delivering the comfort or energy savings the owner expected.
What variable speed actually does
A fixed-speed system usually runs at one output. It turns on, reaches the thermostat setting, and turns off.
A variable-speed system can adjust its output across a range. On a mild day, it may operate at a lower level for a longer period. When the load increases, it can raise the output.
This approach can support:
- More even indoor temperatures
- Lower operating noise
- Better air circulation
- Longer run times
- Improved humidity control in some climates
- Reduced energy use during part-load operation
The result depends on how the system is selected and installed. A variable-speed motor does not repair poor duct design or replace proper sizing.
The higher purchase price may not fit every budget
Variable-speed equipment often has a higher purchase price than single-speed or two-stage equipment. The gap can come from the motor, control board, thermostat, sensors, and installation work.
If the system runs for many hours each year, the energy savings may help balance the added cost. A home with short cooling seasons may see a different result. The same applies to a property that is used only part of the year.
I recommend comparing the full ownership cost instead of looking only at the advertised efficiency rating. Ask for:
- Equipment price
- Installation labor
- Thermostat or control costs
- Expected maintenance needs
- Warranty coverage
- Estimated annual energy use
- Repair costs for key electronic parts
A lower purchase price does not always mean a lower long-term cost. A higher purchase price does not always create a useful return.
Low-speed operation is not always the most efficient choice
Many variable-speed systems perform well when the heating or cooling demand is below the equipment’s full capacity. That is where they can reduce cycling and support steady comfort.
The picture changes when the system operates near its upper range for long periods. A unit that is too small may run at high speed for much of the day. It may use more electricity than expected and struggle to reach the target temperature.
A unit that is too large can also create problems. It may reach the thermostat setting quickly, stop, and restart often. Variable-speed control can reduce this issue, but it cannot fully correct a major sizing mistake.
I prefer a load calculation based on the building rather than a guess based on floor area. Windows, insulation, ceiling height, local weather, air leakage, and occupancy all affect the required capacity.
Humidity control depends on more than speed
Longer cooling cycles can help remove moisture from indoor air. This can be useful in humid regions.
The system still needs the right settings and enough time to operate. A home with heavy air leakage may continue to feel damp even after a variable-speed unit is installed. An oversized system may also cool the room before it removes enough moisture.
In a humid climate, I would ask the contractor how the design handles moisture. Useful questions include:
- Does the thermostat support humidity control?
- Can the system lower its output during long cooling cycles?
- Is a separate dehumidifier needed?
- Are the ducts sealed and insulated?
- Has outdoor air leakage been checked?
A variable-speed unit may support better humidity control, but the building envelope remains part of the solution.
The controls can add complexity
A fixed-speed system is often easier to understand and service. Many technicians are familiar with its basic parts.
Variable-speed equipment may use communicating controls, sensors, circuit boards, and software settings. These parts can improve control, but they also require the right diagnostic tools and training.
In one common service situation, a homeowner reported uneven temperatures after replacing an older unit with a variable-speed model. The equipment itself was working, but the return duct was too small and several supply ducts had leaks. The new system adjusted its output, yet the rooms still felt different from one another. Sealing the ducts and improving airflow produced a better result than changing the speed settings alone.
This is why I ask about local service support before choosing advanced equipment. A system with useful features is less practical if qualified repair help is difficult to find.
A simpler system may suit some properties
A two-stage system can offer part-load operation with fewer control parts than many variable-speed systems. It may provide a balance between comfort, cost, and service access.
A single-speed system may also be reasonable for:
- A small property with a mild climate
- A home with a limited replacement budget
- A rarely occupied building
- A property with basic heating and cooling needs
- A location where advanced service support is limited
The choice should match the building and the owner’s priorities. Quiet operation may matter more to one household. Simple repairs or lower upfront cost may matter more to another.
How I would compare the options
I would use this process before making a decision:
Check the building first.
Review insulation, windows, ductwork, air leakage, and room-to-room airflow.
Request a proper load calculation.
Do not select capacity from floor area alone.
Compare several system types.
Look at single-speed, two-stage, and variable-speed equipment.
Review part-load performance.
Ask how each system operates during mild weather, not only at full capacity.
Estimate total ownership cost.
Include installation, energy, maintenance, controls, and possible repairs.
Confirm service support.
Check whether local technicians can test and repair the equipment.
Match the controls to the user.
A system with advanced settings may not suit someone who prefers simple operation.
Variable speed can be a good fit when the building needs steady comfort, the ductwork supports the airflow, and the owner accepts the added equipment cost and control requirements.
It is not a universal upgrade. In some homes, better insulation, sealed ducts, correct sizing, or a two-stage system may create more value. I judge the complete setup rather than treating variable speed as the main selling point.
Variable speed systems are often presented as a practical way to reduce energy use, improve control, and extend equipment life. Those benefits can appear in HVAC units, pumps, fans, compressors, and other motor-driven equipment.
I have also seen projects where the expected savings did not match daily operation. The problem was not always the motor or drive. Poor sizing, weak controls, maintenance needs, and unsuitable operating conditions can create costs that are easy to miss during the planning stage.
Understanding these downsides helps me make a better equipment decision.
Higher purchase and installation costs
A variable speed system usually needs more than a standard fixed-speed motor. The installation may include a variable frequency drive, sensors, control wiring, filters, communication modules, and extra programming.
This raises the initial project cost.
A small commercial building may install a variable speed air-handling unit to adjust airflow during low-demand periods. The owner may expect lower electricity bills, but the added controls and commissioning work can make the payback period longer than expected.
The correct question is not only, “Can this system reduce energy use?”
I also ask:
- How many hours will the equipment operate at reduced speed?
- What is the actual load profile?
- How much will installation and setup cost?
- Will the control system need regular service?
- Does the expected energy reduction justify the added equipment?
A system that runs near full load most of the time may not gain much from speed control.
Energy savings depend on operating conditions
Variable speed systems do not create the same level of savings in every application. Their performance depends on the relationship between speed, load, pressure, flow, and operating hours.
A pump serving a water circulation loop may save energy when demand changes during the day. A pump that must maintain high pressure around the clock may run close to its upper speed range, leaving less room for savings.
I have found that many energy estimates use ideal operating conditions. Daily use is often less stable. Filters become dirty, valves remain partly closed, sensors drift, and users adjust settings in ways the original design did not predict.
A detailed load study can provide a more useful estimate than a simple percentage claim.
Low-speed operation can create equipment problems
Running a motor at reduced speed may affect cooling, lubrication, airflow, and mechanical balance. Some motors rely on their own shaft-mounted fan for cooling. When the motor turns slowly, that fan may move less air across the motor housing.
The result can be higher motor temperature during long periods of low-speed operation.
A pump may also face poor lubrication or unstable flow when operated below its recommended range. A fan may produce vibration if the control settings pass through a natural resonance point.
These issues do not appear in every system. They depend on the motor design, load type, speed range, and installation quality.
I check the manufacturer’s operating limits before selecting a drive. A wide control range on a product sheet does not always mean that every load can run safely across that range.
Maintenance becomes more technical
A fixed-speed motor may be familiar to many maintenance teams. A variable speed system adds electronic components and control functions that require different service skills.
A technician may need to inspect:
- Drive fault codes
- Cooling fans and air passages
- Electrical connections
- Harmonic filters
- Grounding and shielding
- Motor insulation
- Pressure or temperature sensors
- Control signals and communication links
Dust and heat can shorten the service life of a drive. A drive installed inside a hot mechanical room may need more attention than the same unit placed in a clean, temperature-controlled cabinet.
When a system stops, the fault may not be easy to identify. The motor, drive, sensor, wiring, or software settings could be involved. A maintenance plan should include training and access to suitable test equipment.
Electrical interference can affect nearby equipment
Variable frequency drives can produce electrical noise and harmonic distortion. The effect depends on the drive, motor cable length, grounding method, power supply, and nearby equipment.
Sensitive devices may experience communication errors, sensor readings may become unstable, and some electrical components may run warmer than expected.
This risk is more common when several drives share the same electrical system. A commercial building with elevators, data equipment, lighting controls, and HVAC drives may need a power quality review before installation.
Proper cable routing, grounding, filters, and drive settings can reduce the risk. These items should be included in the design rather than added after a fault appears.
Motor compatibility matters
Not every motor works well with every variable frequency drive. Older motors may have insulation systems that were not designed for fast switching pulses. Long cable runs can also increase voltage stress at the motor terminals.
In some cases, the motor may need:
- Drive-rated insulation
- Output filters
- Insulated bearings
- Shaft grounding
- A shorter cable route
- A motor replacement
Replacing only the drive may create a mismatch. I prefer to check the motor nameplate, age, insulation rating, bearing design, cable length, and expected speed range before making a recommendation.
Control settings can reduce performance
A variable speed system depends on correct programming. A poor setting can cause short cycling, unstable pressure, slow response, or repeated fault events.
For example, a ventilation fan may reduce speed to save power, but the control system may respond too slowly when occupancy rises. Indoor air quality can suffer even though the fan is using less electricity.
A chilled water pump may also hunt between speed levels if the pressure sensor is placed in the wrong location. The pump keeps speeding up and slowing down, which can increase wear without delivering stable control.
Commissioning should include real operating tests. I look at startup, low load, high load, sensor response, fault recovery, and manual override functions.
Noise may change rather than disappear
Lower speed can reduce some mechanical noise. The drive itself may introduce a high-pitched sound, especially at certain carrier frequencies. Fans and motors can also create tones that were not present at fixed speed.
Noise depends on the equipment, mounting method, room layout, and operating speed. A system that sounds quiet during a quick test may produce a noticeable tone during evening operation.
For offices, apartments, hotels, and healthcare spaces, acoustic testing can be useful. Motor speed alone does not tell me how the finished system will sound.
Backup operation may be more complex
A fixed-speed system can often be connected to a simple backup arrangement. A variable speed system may need backup drives, bypass starters, spare control parts, or manual operating procedures.
If the drive fails, the motor may stop even when the mechanical equipment is still usable. A bypass can keep the motor running at fixed speed, but the system may lose automatic control and use more energy.
The right backup approach depends on the equipment’s role. A small exhaust fan may accept a basic bypass. A process pump, cooling system, or ventilation unit serving a critical area may need a stronger recovery plan.
A practical review before purchase
I use a simple review process before approving a variable speed system.
I collect operating data rather than relying on a single design point. Energy use, runtime, pressure, flow, temperature, and seasonal demand can reveal whether the system will spend enough time at reduced speed.
I check the full cost. The estimate should include the drive, sensors, wiring, cabinet changes, programming, commissioning, maintenance, training, and possible filters or grounding equipment.
I confirm compatibility between the drive, motor, load, and control system. This step can prevent many problems that appear after installation.
I also ask who will maintain the system. If the local service team has no experience with drives or control faults, training and spare parts may be needed.
Variable speed systems can be a good fit when demand changes often and the control strategy matches the equipment. They can be a poor fit when the load stays near full capacity, the motor is not compatible, or the project does not allow time for commissioning.
The best decision comes from measured operating needs, not from a general promise of energy savings. A careful design may cost more at the start, yet it can reduce faults and service surprises later. A simple fixed-speed setup may also be the better choice when the application has a stable load and limited control needs.
