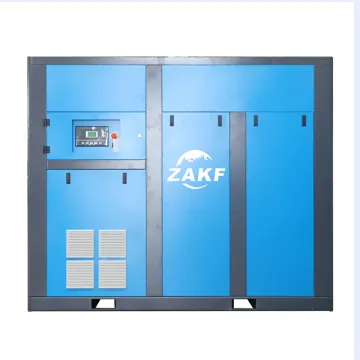

30 HP Fixed Speed Screw: The Unsung Hero of Industry

A 30 HP fixed speed screw compressor can provide steady compressed air for workshops, factories, and production lines that need a consistent air supply. It is often selected for tools, pneumatic controls, packaging machines, CNC equipment, and general plant air.

The main question I ask before choosing one is simple: does the site need a stable air flow for long operating periods, or does demand change sharply during the day?

A fixed speed compressor runs its motor at a set speed. It loads when the air pressure falls and unloads when the system reaches the set pressure. This design is different from a variable speed unit, which changes motor speed as air demand rises or falls.

For a site with regular air use, the fixed speed design can offer a straightforward setup and familiar maintenance process.

Where a 30 HP Unit Fits

A 30 HP motor is close to 22 kW of rated motor power, although actual electrical input depends on the motor, pressure setting, cooling system, and compressor design.

This size may suit:

• Metal fabrication workshops
• Automotive repair plants
• Furniture and wood-processing shops
• Packaging equipment
• Textile machinery
• Small production lines
• General factory air systems
• Pneumatic tools used across several work areas

The compressor should match the actual air requirement rather than the motor label alone. A plant using several air tools at the same time may need a larger air receiver, a dryer, or another compressor to manage peak demand.

What I Check Before Purchase

I start with the air demand. Each tool and machine has a consumption figure, often shown as CFM or m³/min. I add the expected simultaneous demand and leave a practical operating margin.

I also check the working pressure. A compressor rated for 7 bar may not deliver the same air volume at 10 bar. Pressure settings affect output, power use, and operating temperature.

The site conditions matter as well:

• Ambient temperature
• Dust level
• Ventilation
• Electrical supply
• Available floor space
• Drainage for condensate
• Noise limits
• Distance from the air-use points

A 30 HP compressor installed in a small, poorly ventilated room may run hotter and require more service attention. Good airflow around the machine helps the cooling system work as intended.

Fixed Speed Operation and Air Demand

A fixed speed screw compressor is most comfortable with a steady workload. When the factory uses air throughout the shift, the compressor can spend more time in its loaded state.

A site with short, irregular air demand may see more unload time. During unload periods, the motor may still consume power without producing the same amount of compressed air. A properly sized receiver can reduce frequent load and unload cycles.

For example, a metal workshop may use air continuously for plasma cutting, cleaning, and pneumatic tools. Its demand can remain fairly stable during production hours. A 30 HP fixed speed machine may be a practical option if its measured air use matches the compressor output.

A repair shop that runs only one impact wrench at a time may have a different pattern. The same compressor could be larger than needed for that workload.

Air Quality Needs Attention

Compressed air quality depends on the application.

A general workshop may need a standard line filter and a refrigerated dryer. Food packaging, electronics, painting, and precision equipment may require a different treatment system. Oil carryover, moisture, and dust can affect tools and finished products.

A typical system may include:

1. Air compressor
2. Air receiver
3. Aftercooler
4. Water separator
5. Refrigerated or desiccant dryer
6. Line filters
7. Distribution piping
8. Automatic condensate drains

The correct combination depends on the air quality class required by the equipment and process. The compressor alone does not define the quality of air delivered to the production line.

Installation Points That Affect Performance

I keep enough space around the compressor for inspection, filter changes, and belt or coupling checks. The intake area should be away from heavy dust, paint mist, and hot exhaust air.

The electrical system should be checked by a qualified technician. The motor starter, cable size, protection devices, and grounding arrangement need to match the machine and local site requirements.

The air piping should have suitable internal diameter and as few sharp restrictions as possible. Small pipes, blocked filters, and leaking fittings can create pressure loss. When users complain about low pressure, the compressor is not always the source of the problem.

An air leak test can reveal wasted capacity. Common leak points include hose connections, quick couplers, drains, valve stems, and old seals. A simple repair may improve system pressure without changing the compressor.

Maintenance I Plan for the Machine

Maintenance intervals vary by model, working hours, oil type, ambient conditions, and manufacturer guidance. I normally keep a service record that includes:

• Oil filter changes
• Air filter inspection
• Oil separator inspection
• Lubricant condition
• Cooler cleaning
• Belt or coupling condition
• Motor terminals
• Drain operation
• Operating pressure
• Loaded and unloaded hours

Dusty environments may require more frequent air filter checks. High temperatures can affect lubricant life and separator performance. Ignoring these conditions can lead to higher power use or unexpected downtime.

The oil separator also deserves attention. If the separator becomes restricted, pressure loss may increase. If it is damaged or overdue for replacement, oil carryover may appear in the air system.

How I Compare Different Models

I do not compare compressors by horsepower alone. I look at:

• Delivered air flow at the required pressure
• Motor efficiency
• Specific power
• Oil capacity
• Control method
• Noise level
• Service access
• Warranty terms
• Spare parts availability
• Local technical support

The delivered air figure should be checked at the stated pressure. A model may show a higher flow at a lower pressure, while the production line needs a higher pressure setting.

A clear product sheet should also show the rated voltage, frequency, dimensions, weight, connection size, noise data, and recommended service conditions. If a specification is missing, I ask the supplier before making a decision.

A Practical Selection Example

A small packaging plant operates pneumatic cylinders and sealing equipment for most of its workday. The measured demand is close to the output of a 30 HP compressor at the required pressure. The plant has stable electrical power, a clean compressor room, and a dryer sized for the line.

In this situation, a fixed speed screw compressor may fit the operating pattern. The plant manager should still confirm peak demand, receiver size, air quality, and backup needs.

If production changes often, air consumption drops for long periods, or several shifts use very different amounts of air, a variable speed model or a multi-compressor arrangement may deserve comparison. The best choice depends on the usage pattern, not on the 30 HP label.

Why the Design Can Work Well

A 30 HP fixed speed screw compressor offers a familiar operating method for users who need steady compressed air. It can support a range of industrial tasks when the output, pressure, installation, and service plan are matched to the site.

I treat the compressor as part of an air system rather than an isolated machine. The receiver, dryer, filters, pipes, drains, and leak control all affect the result.

A careful demand check helps prevent two common mistakes: choosing a unit that cannot support peak use, or installing a machine that spends much of its time unloading. The right 30 HP fixed speed compressor is the one that fits the plant’s measured air demand, working pressure, air quality, and daily operating pattern.

In many factories, the machines that attract attention are the newest ones: robotic arms, smart sensors, and automated control systems. I understand why. New technology can improve visibility and reduce manual work.

Yet when I walk through a plant, I often notice a quieter piece of equipment doing the work that keeps everything moving: the industrial pump.

Pumps transfer water, oil, chemicals, slurry, and other fluids through production lines. They support cooling systems, boiler rooms, wastewater treatment, food processing, mining, and many other operations. A pump may not look exciting, but a failure can stop an entire process.

That is why this industrial workhorse still matters.

It handles work that cannot wait

Most production sites depend on a steady flow of materials. A cooling system needs water. A boiler needs feedwater. A chemical process may require a controlled flow between storage tanks and reaction vessels.

When a pump stops, the problem can spread quickly.

I have seen this pattern in many maintenance plans. A small seal leak begins as a repair task. If the leak is ignored, the motor may face extra strain, the surrounding area may become unsafe, and production may need to slow down. The pump itself is only one part of the system, but its condition affects many other parts.

A reliable pump helps operators keep the process stable. It does not need to perform a dramatic task. It needs to deliver the right flow at the right pressure for long periods.

Proven designs are often easier to support

Many industrial pumps use designs that have been refined over decades. Centrifugal pumps, diaphragm pumps, gear pumps, and screw pumps each serve different duties.

This long history gives maintenance teams a practical advantage. Technicians often understand the common failure points:

• Worn seals
• Damaged bearings
• Blocked suction lines
• Misaligned shafts
• Cavitation
• Excessive vibration
• Poor lubrication
• Incorrect operating pressure

A familiar design can also make training easier. A technician who has worked on one pump from a certain design family may already understand the basic service process for another unit.

That does not mean every older pump should remain in service. Age, energy use, parts supply, and safety conditions all deserve attention. A familiar machine still needs a proper inspection.

The real value is found in total operating cost

Purchase price tells only part of the story.

A low-cost pump may consume more electricity, require frequent repairs, or create unstable flow. A higher-priced unit may reduce those problems, but the result depends on correct sizing and proper installation.

I prefer to look at the full operating picture:

1. How much energy does the pump use?
2. How often does it need service?
3. Are replacement parts easy to obtain?
4. Can the team repair it without long downtime?
5. Does it match the actual flow and pressure requirement?
6. Will the materials resist the fluid being handled?
7. Can operators monitor its condition?

Oversizing creates its own problems. A pump that is too large may use more power and force operators to control flow through throttling. A pump that is too small may run continuously at a heavy load.

The best choice is not always the newest model. It is the model that fits the process and remains practical to maintain.

Maintenance is where performance is won or lost

A strong pump can still fail under poor operating conditions.

I recommend a simple maintenance routine based on the equipment’s duty:

• Check vibration and unusual noise
• Inspect seals for leakage
• Review motor temperature
• Confirm lubrication levels
• Watch for changes in flow or pressure
• Clean strainers and filters
• Check alignment after major repair work
• Record repeated faults

These checks help teams spot gradual changes before they become major failures. A sudden noise may indicate a bearing problem. A drop in flow may point to a blockage, worn impeller, air entering the line, or a valve problem.

Condition records also improve decision-making. If one pump has needed four seal replacements in a year, the team can study the cause instead of treating every repair as a separate event.

The record may reveal poor alignment, unsuitable seal material, excessive pressure, or a process change that was never reflected in the original pump selection.

Efficiency does not always require full replacement

Many plants want to reduce energy use but cannot pause production for a large equipment upgrade. Small changes can still help.

A variable frequency drive may allow the motor speed to match demand. Correct pipe sizing can reduce resistance. A clean suction line can improve pump performance. Better control settings may prevent unnecessary cycling.

A maintenance team can also compare actual operating conditions with the original design data. Production requirements often change over time. A pump selected for one flow rate may now be handling a different duty.

In a food-processing plant, for example, a transfer pump may have been chosen for a product line that once ran at a high volume. If the line now operates at a lower rate, running the pump at full speed may waste power and increase wear. A control review may solve part of the problem without replacing the entire system.

The right response depends on measurements, not assumptions.

Automation makes the pump more useful

Traditional equipment and modern technology can work together.

A pressure sensor can show whether the system is operating within its normal range. A vibration sensor can help identify mechanical changes. A connected motor drive can provide data on speed, current, and load.

This information helps maintenance teams plan work with more confidence. It can also reduce unnecessary inspections.

I do not see monitoring technology as a replacement for basic maintenance knowledge. Data is useful when people understand what it means. A rising vibration reading deserves attention, but the team still needs to inspect the pump and find the physical cause.

Simple systems often provide enough information. A plant does not need a complex digital platform for every pump. The monitoring method should match the value and risk of the equipment.

Safety remains a central concern

Pumps may handle hot water, flammable liquids, corrosive chemicals, or contaminated wastewater. A failure can create more than a production issue.

Before service work begins, the team should follow the site’s isolation and lockout procedures. Lines may need to be drained and depressurized. The correct protective equipment depends on the fluid and the task.

Material selection matters as well. A pump used with clean water may not be suitable for an aggressive chemical. A seal that performs well at room temperature may fail when exposed to heat.

Clear labels, accessible shutoff valves, service space, and maintenance instructions can reduce risk. These details may appear basic, yet they shape how safely people can work around the machine.

A practical selection process

When I help review an industrial pump, I start with the process rather than the product name.

The key questions include:

• What fluid will the pump handle?
• What flow rate is required?
• What pressure or head must it produce?
• What temperature range will it face?
• Are solids present?
• How many hours will it run each day?
• What power supply is available?
• What level of spare parts support can the site access?
• What happens if the pump stops?

The answers narrow the options. They also prevent a common mistake: choosing equipment from a catalog based on a single number.

Flow rate alone is not enough. A pump must work with the pipe network, valves, fluid properties, motor, controls, and operating schedule.

The workhorse still earns its place

Industrial progress does not remove the need for dependable basic equipment. A modern factory may use automation, cloud dashboards, and advanced control systems, yet it still depends on pumps that move fluids through the process.

That is the lesson I take from mature industrial equipment. Its value comes from steady service, clear maintenance needs, available skills, and a design that fits the job.

The best result is not achieved by keeping old equipment forever or replacing everything with new models. A better approach is to inspect actual performance, understand operating costs, improve weak points, and replace equipment when the evidence supports that decision.

An industrial pump rarely receives much attention when it works well. That quiet performance is the reason it still matters.

When production depends on compressed air, unstable pressure can affect every stage of the work. Tools may slow down, machines may pause, and operators may spend time checking a system that should simply run in the background.

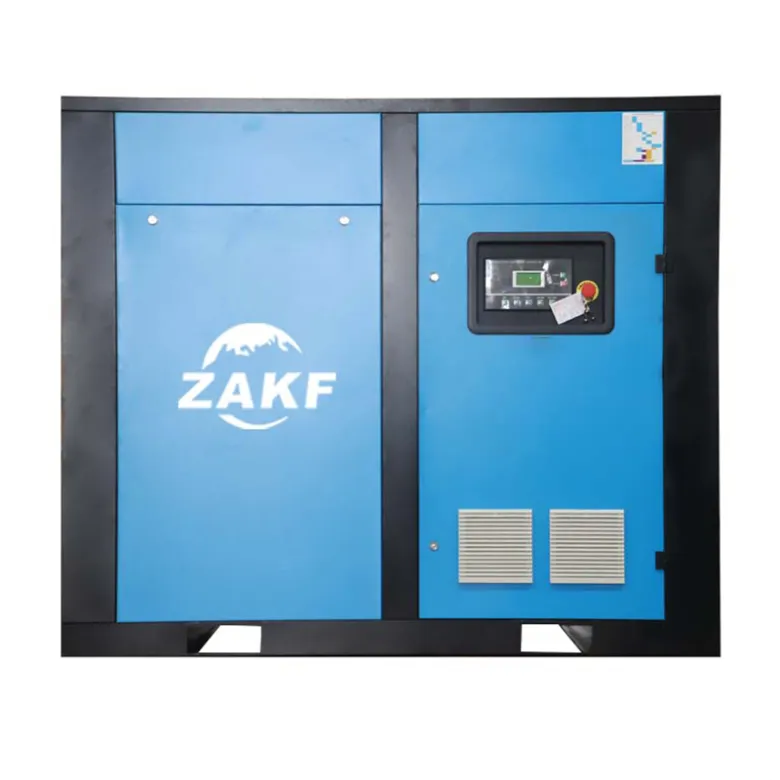

I look at a 30 HP screw compressor as a practical choice for businesses that need steady air for several hours each day. It can support many industrial tasks while keeping the air supply more consistent than a basic piston compressor used beyond its suitable range.

A rotary screw design produces air through two rotating screws. The process supports a continuous air supply, which suits equipment such as:

• CNC machines
• Pneumatic tools
• Packaging equipment
• Textile machinery
• Painting systems
• Food processing lines
• Assembly stations
• Small and medium production workshops

The correct compressor is not selected by motor power alone. I always check the working pressure, air demand, operating schedule, air quality, and installation space before making a recommendation.

Match air output with actual demand

A 30 HP motor is often rated at about 22 kW, but the available air output depends on the compressor design, working pressure, inlet conditions, and control method.

A workshop may have several pneumatic tools connected to one air system. If the total demand reaches its highest point at the same time, the compressor needs enough capacity to keep pressure stable. If the selected unit is too small, the system may run for long periods while pressure continues to fall.

If the unit is much larger than the real demand, the purchase and operating costs may not fit the business plan. I prefer to review measured air use when records are available. A pressure and flow test can provide a more useful basis than an estimate based only on the number of machines.

Consider the working pressure

Many applications operate around 7 to 8 bar, but the required pressure varies by equipment. A higher pressure setting can reduce air delivery and may increase energy use.

For example, a packaging machine may need a stable pressure range to move cylinders and control valves. A machine shop using pneumatic tools may have a different demand pattern, with short peaks followed by lower use.

The compressor should be selected around the actual pressure requirement, not the highest number shown in a product brochure. A small adjustment in operating pressure can affect daily power consumption.

Look at the duty pattern

Some businesses use compressed air throughout the shift. Others operate in short cycles. A screw compressor is often considered when the demand is steady or when the compressor needs to run for extended periods.

A small metalworking shop may use air for CNC equipment, cleaning, and pneumatic tools. The demand can change during the day. A control system with suitable load and unload settings may help the compressor respond to these changes without running at full output all the time.

Variable speed control can also be considered when air demand moves up and down. Its value depends on the load profile, electricity cost, running hours, and service conditions. It is not automatically the right choice for every site.

Pay attention to air quality

Oil-injected screw compressors are used in many industrial settings because they can provide a steady air supply with a common maintenance setup. They require oil separation, filtration, and regular oil service.

Applications that contact food, medicine, or sensitive products may require stricter air treatment. A dryer, fine filter, activated carbon filter, or oil-free compressor may be needed, depending on the process and local requirements.

A compressor alone does not define the final air quality. The complete system matters. Pipe condition, receiver tanks, drains, filters, and dryer performance all affect the air reaching the equipment.

Plan the installation before delivery

A 30 HP screw compressor needs enough room for ventilation, inspection, and service access. The room should allow hot air to leave the area and should not expose the machine to excessive dust, moisture, or corrosive gas.

I also check:

• Power supply and voltage
• Cable size and electrical protection
• Air receiver tank capacity
• Dryer and filter location
• Drainage arrangements
• Pipe diameter and layout
• Noise limits near work areas
• Access for oil and filter changes

A narrow pipe or long pipe route can create pressure loss. The compressor may be working correctly while the equipment at the end of the line receives less pressure than expected.

Use a suitable air receiver

The air receiver helps manage short demand peaks and reduces rapid compressor cycling. Its size depends on the compressor, pressure range, air demand, and control method.

A receiver does not replace the need for correct compressor sizing. It supports the system, but it cannot solve a continuous shortage of air capacity.

In a packaging plant, for example, a receiver may help handle repeated bursts from cylinders and valves. The tank still needs proper safety protection, draining, and inspection according to local requirements.

Build a clear maintenance plan

Regular service helps the compressor operate within its designed conditions. The service schedule may include:

• Oil inspection and replacement
• Air filter replacement
• Oil separator inspection
• Cooler cleaning
• Belt or coupling checks
• Drain valve inspection
• Leak testing
• Pressure and temperature checks

Air leaks are easy to overlook. A loose fitting or damaged hose may create a constant demand even when production equipment is idle. I recommend checking the system during non-production hours, when sound from tools and machines is lower.

A simple leak repair can reduce wasted compressor running time. The actual result depends on the size and number of leaks, system pressure, and operating hours.

Choose the compressor around the complete system

A 30 HP screw compressor can support stable industrial air use, but the final result depends on more than the motor rating. The compressor, dryer, filters, receiver, piping, controls, and maintenance plan need to work together.

I start with the process demand. Then I compare pressure, flow, running hours, air quality, installation conditions, and service access. This approach helps avoid two common mistakes: choosing a unit that cannot keep up, or installing a larger unit that does not match the site’s normal demand.

For many workshops and production lines, steady air is part of steady work. A properly selected 30 HP screw compressor can become a reliable part of that system when its capacity and operating conditions match the actual needs of the business.

When a production line stops, the cause is not always a large machine failure. A worn bearing, a delayed spare part, a loose sensor, or a missed service check can slow an entire operation. The people who prevent these problems rarely stand in the spotlight. They work quietly behind the line, watching equipment, checking details, and making sure small issues do not become long interruptions.

That quiet role often belongs to the maintenance team.

I have seen how much pressure falls on maintenance workers when every minute of downtime affects output, delivery plans, and customer trust. They need clear equipment records, suitable spare parts, reliable tools, and a simple way to decide what needs attention.

A steady production process usually starts with a practical maintenance routine.

1. Know which equipment supports the line

Not every machine carries the same level of risk. A failed conveyor motor may stop the whole line, while a damaged light or cover may not affect output at once.

I begin by listing the equipment that can affect:

• Production speed
• Product quality
• Worker safety
• Delivery schedules
• Energy use
• Other connected machines

This list helps the team focus its time. A production manager can then set different check intervals for high-risk and low-risk equipment.

A packaging plant, for example, may depend on one sealing machine for several product sizes. If the sealing temperature becomes unstable, the line may produce packages that need inspection or rework. A simple temperature check can help the team spot the change before it affects a full batch.

2. Watch for small changes

Machines often give warning signs before they stop. The signs may include unusual noise, higher vibration, heat around a motor, slower movement, oil leakage, or repeated sensor alarms.

These signs should be recorded instead of being treated as minor annoyances. A short note can help reveal a pattern:

• What changed
• When it appeared
• Which machine showed the issue
• What action was taken
• Whether the problem returned

A maintenance log does not need to be complex. A shared digital form or a clear paper sheet can work when the team uses it consistently.

I prefer records that use plain language. “Motor sounds rough during startup” gives the next technician more value than a vague note such as “machine checked.”

3. Keep the right parts available

A production line can remain idle while a small part is being sourced. This is why spare-part planning matters.

The goal is not to store every possible component. Excess stock takes up space and can tie up money. A better approach is to identify parts that are:

• Used often
• Hard to source
• Needed for equipment with long repair times
• Linked to safety or quality checks
• Shared across several machines

Part numbers should match the equipment records. Storage locations should be easy to find. When a part is used, the stock record needs an update.

A missing stock update can create a false sense of security. The system may show two replacement sensors while the shelf is empty. A short stock check can prevent this gap.

4. Set maintenance tasks that people can complete

A maintenance plan should fit the work area. If a checklist takes too long or uses unclear terms, it may be skipped during a busy shift.

Useful tasks can include:

• Cleaning dust from air vents
• Checking belts for wear
• Inspecting cables and connections
• Measuring temperature or vibration
• Tightening approved fasteners
• Testing emergency stops
• Replacing filters at the correct interval

Each task should show who performs it, what result is expected, and what action follows an abnormal reading.

Good maintenance is not about checking boxes. It is about giving the team enough information to make a sound decision.

5. Learn from every stoppage

A repair restores the machine. A review helps reduce repeat problems.

After an unplanned stop, I look at three questions:

1. What caused the failure?
2. Why was the issue not found earlier?
3. What small change could reduce the chance of a repeat event?

The answer may involve a new inspection point, a replacement interval, operator training, or a change in spare-part storage.

Blaming one person rarely improves the process. A calm review gives the team more useful information and helps operators, technicians, and managers work from the same facts.

Production depends on more than machines and schedules. It depends on the people who notice a small change, record it, prepare the right part, and act before the line loses control.

Maintenance may not attract attention when everything is running. That is part of its value. The quiet work behind the equipment gives production a steadier path, protects product quality, and helps teams respond with less confusion when a problem appears.

Power matters when work depends on steady performance. A machine may run for several hours each day, face dust and vibration, and support tasks that cannot pause without affecting the whole schedule. That is why I look beyond output alone. I need equipment that delivers usable power, handles regular demands, and remains practical to maintain.

This design focuses on both strength and dependability.

The power system is built to support demanding work across workshops, construction areas, farms, warehouses, and other operating sites. Its structure is made for routine use, while its controls help users monitor operation with less guesswork.

When I choose equipment for a worksite, I usually look at four areas.

Stable power delivery

Power needs can change during the day. Tools may start and stop, motors may draw more current during startup, and several devices may run at the same time. A suitable system should match the expected load and provide steady output within its rated capacity.

This helps reduce avoidable interruptions and gives operators a clearer way to plan daily tasks. The right choice depends on the equipment being powered, the total load, and the working environment.

A frame made for regular use

Worksites are rarely clean or quiet. Equipment may be moved across uneven ground, placed near dust, or used during long shifts. A solid frame and well-arranged components can help protect the system during normal operation.

Good design also makes a difference when the unit needs to be moved, stored, or checked. Handles, access points, and connection layouts should support safe handling without making routine work harder.

Simple operation and service access

I prefer controls that are easy to understand. Clear indicators can help operators check the basic condition of the system before use. Accessible service areas can reduce the time needed for inspections, cleaning, and scheduled maintenance.

Regular checks still matter. Users should follow the product manual, confirm fluid levels where applicable, inspect cables and connections, and keep ventilation areas free from blockage. These habits support safer use and help equipment stay ready for work.

Performance that fits the job

A small workshop may need power for lighting, tools, and selected equipment. A construction team may need a different capacity, connection type, or transport setup. A farm may place more focus on long operating periods and easy access for service.

There is no single configuration for every site. I recommend listing the devices that will run together, checking their rated requirements, and allowing suitable capacity for startup demand. A qualified technician can help confirm the correct setup when the load is complex.

For example, a repair workshop may use a power unit for lighting, hand tools, and a compressor. If the team only checks the running wattage and ignores startup demand, the system may struggle when the compressor begins operating. A load review before purchase gives the workshop a clearer and safer plan.

Reliability also comes from daily use. Keep the unit on a stable surface, use the correct connections, provide proper ventilation, and avoid operating it beyond its rated capacity. Follow local safety requirements and the instructions supplied with the equipment.

Power equipment should not create more work than it solves. A strong design, clear operation, suitable capacity, and regular care give users a more practical way to support daily tasks.

Built for power means preparing for the work ahead. Designed for reliability means making that power easier to use, check, and maintain.

For any inquiries regarding the content of this article, please contact Grace: zakf2@screwaircompressor.cn/WhatsApp +8613414280001.

International Energy Agency — 2023 — Energy Efficiency in Industrial Systems

U.S. Department of Energy — 2022 — Improving Compressed Air System Performance

European Commission — 2021 — Industrial Pumps and Energy Efficiency

American Society of Mechanical Engineers — 2020 — Maintenance Strategies for Industrial Equipment

International Organization for Standardization — 2019 — Air Quality Requirements for Compressed Air Systems

United Nations Industrial Development Organization — 2022 — Reliable Machinery and Sustainable Manufacturing Operations
