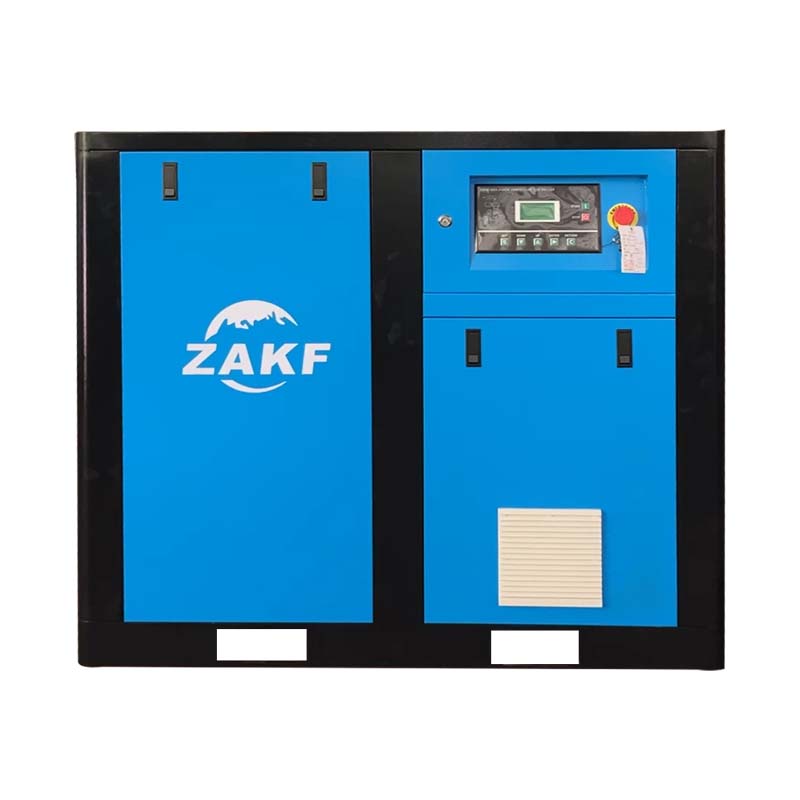

60HP 45KW two stage screw air compressor

60HP 45KW two stage screw air compressor ZAT-60 type: efficient high-pressure industrial power equipment

The 60 HP Screw Air Compressor ZAT-60 type is a high-performance industrial power equipment designed to provide stable and reliable medium and high pressure compressed air. The equipment adopts advanced two-stage compression technology, equipped with low-pressure stage and high-pressure stage screw groups, which can efficiently build up pressures up to 7-10 bar (0.7-1.0 MPa). Through this staged compression process, the equipment can reduce energy consumption by 12% to 18% compared with traditional single-stage compressors, making it an energy-saving solution for various industrial applications.

Screw Type Compressor is an efficient industrial power equipment that adopts two-stage compression technology (low-pressure stage + high-pressure stage screw group). Through staged compression, the air pressure is smoothly increased to 7-10bar (0.7-1.0MPa), and the energy consumption is reduced by 12%-18% compared with single-stage compression. Its 60 hp (about 45 kW) drive motor provides an exhaust volume of 9.7-12.5 m³/min and is equipped with an intelligent control system for adaptive pressure regulation. It is particularly suitable for scenes that require continuous medium and high pressure gas sources, such as injection molding, laser cutting, and pneumatic assembly lines. The bipolar structure effectively controls the exhaust temperature below 80°C, and the service life of bearings and rotors is extended to more than 40,000 hours. The integrated oil circuit design and three-stage filtration system ensure that the output air quality meets the ISO 8573-1 standard.

Screw Air Compressor adopts two-stage compression technology, which is highly efficient and energy-saving (12%-18% power saving compared to single-stage). This model has a power of up to 45kW, can stably output 9.7-12.5m³/min of air volume, and accurately adapts to the industrial pressure requirements of 7-10bar. Its two-stage structure controls the exhaust temperature below 80°C, and combined with permanent magnet frequency conversion and intelligent control systems, it not only extends the service life of core components to 40,000 hours, but also can match gas demand in real time. Integrated three-stage filtration ensures that the air quality meets the ISO 8573-1 standard. The compact design reduces noise to below 72dB, making it an ideal choice for medium and high pressure applications such as laser cutting and injection molding.

Mobile Screw Air Compressor is highly energy-efficient due to its two-stage compression technology (12%-18% energy saving compared to single-stage). It is widely used in laser cutting (requiring a stable high-pressure air source for slag blowing and cooling), injection molding (requiring continuous maintenance of 7-10 bar pressure during the pressure holding stage), textile machinery (pneumatic control system), food packaging (aseptic compressed air filling line) and other fields. Its exhaust volume is 9.7-12.5m³/min, which can meet the needs of medium-sized production lines. The two-stage structure effectively controls the exhaust temperature and extends the life of core components to more than 40,000 hours. At the same time, it integrates a precision filtration system to ensure that the air quality meets the ISO 8573-1 standard, which is particularly suitable for industrial scenarios with strict requirements on pressure stability and air purity.
