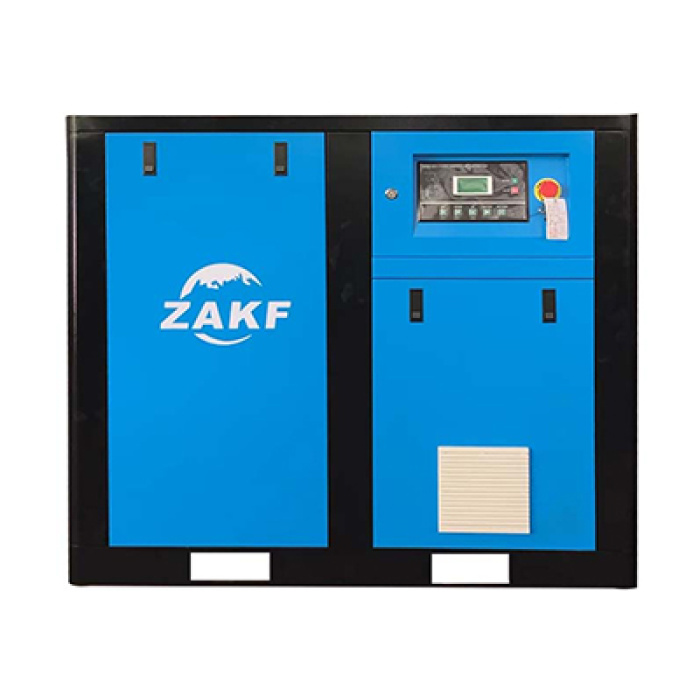

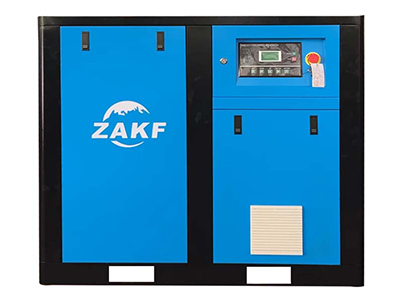

50HP fixed speed belt driven compressor

Payment Type: L/C,T/T,D/P,Paypal,D/A

Transportation: Ocean,Land

Get Latest Price

Contact Now

Product Attributes



Product Attributes

Model No.: ZABT-50

Brand: ZAKF

Packaging & Delivery
Selling Units	:	Piece/Pieces
Package Type	:	Wooden box or customized
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description



This 50hp industrial frequency belt-driven Screw Air Compressor is driven by a 37kW motor and features a belt drive with buffer design. It is widely used in industrial applications requiring a stable air supply, with a flow rate of up to 6.2 m³/min (0.8MPa operating conditions). It provides clean power to paint booths and stamping equipment in the automotive industry, and its low-pulsation characteristics ensure efficient operation of automatic winding machines in the textile industry. It can also adapt to the intermittent high-load demands of the chemical and metallurgical industries. The belt drive has shock absorption capabilities and can accommodate voltage fluctuations of ±10%. Through an intelligent control system, multiple units can operate in parallel to meet the energy-saving air supply needs of continuous production scenarios such as food packaging and injection molding, with an overall energy efficiency 3-5% higher than direct-drive models.

Product name	50HP fixed speed belt driven compressor
Model	ZABT-50
Product accumulation size（LWH MM）	13009301250
Product Weight (KG)	605

The 50HP fixed speed belt driven compressor is a medium-to-large screw air compressor device driven by a three-phase 380V industrial frequency power supply. Its core component is a 50 horsepower (about 37kW) motor driving a twin-screw main engine through a belt drive system, with a displacement of up to 6.2m³/min (0.8MPa working condition) and an energy efficiency performance of less than 3.2kW/(m³/min). Its belt drive design can effectively absorb impact loads and adapt to voltage fluctuations of ±10%. The 2 Stage Compressor is equipped with a two-stage filtration system and an intelligent controller as standard, which is suitable for continuous air supply scenarios such as textile and automotive parts manufacturing. The maintenance cycle can reach 4000-5000 hours, and the comprehensive energy efficiency is 3-5% higher than that of the same power direct-connected model. It is the preferred solution for medium-sized industrial enterprises to stabilize air supply and control energy consumption.

The core advantage of the 50HP industrial frequency belt screw air compressor is that the belt drive buffer design effectively reduces the impact wear between the motor and the main engine, thereby extending the life of the equipment (maintenance cycle is up to 4000-5000 hours); its 37kW industrial frequency motor can adapt to ±10% voltage fluctuations and maintain a stable air supply at a speed of 6.2m³/min (0.8MPa), which is 3-5% more energy efficient than the direct-connected type; at the same time, it has multi-machine intelligent control capabilities and can flexibly respond to the ever-changing load requirements of scenarios such as automotive spraying and textile winding. With its comprehensive cost-effectiveness and reliability, it has become the preferred solution for medium-sized industrial enterprises.

Supply Ability & Additional Information



Packaging: Wooden box or customized

Productivity: Monthly production of 2000 uni

Transportation: Ocean,Land

Place of Origin: Dongguan, Guangdong

Supply Ability: Monthly production of 2000 units

Certificate: CE Certification

HS Code: 84148016

Port: Shenzhen Yantian Port,Shenzhen Shekou Port,Guangzhou Nansha Port

Payment Type: L/C,T/T,D/P,Paypal,D/A

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP
