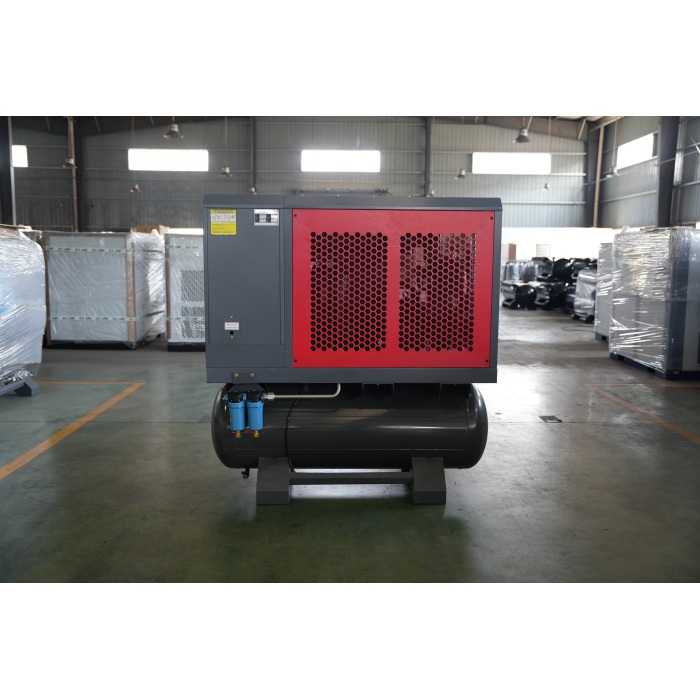

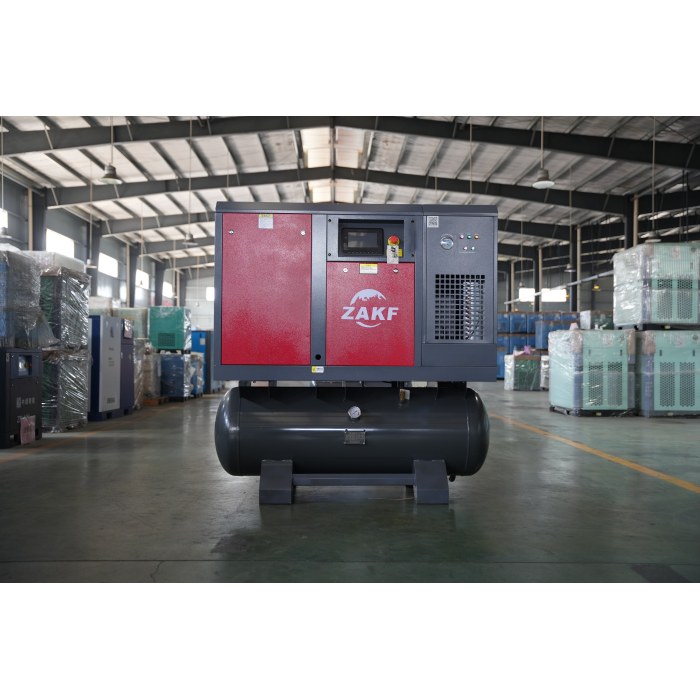

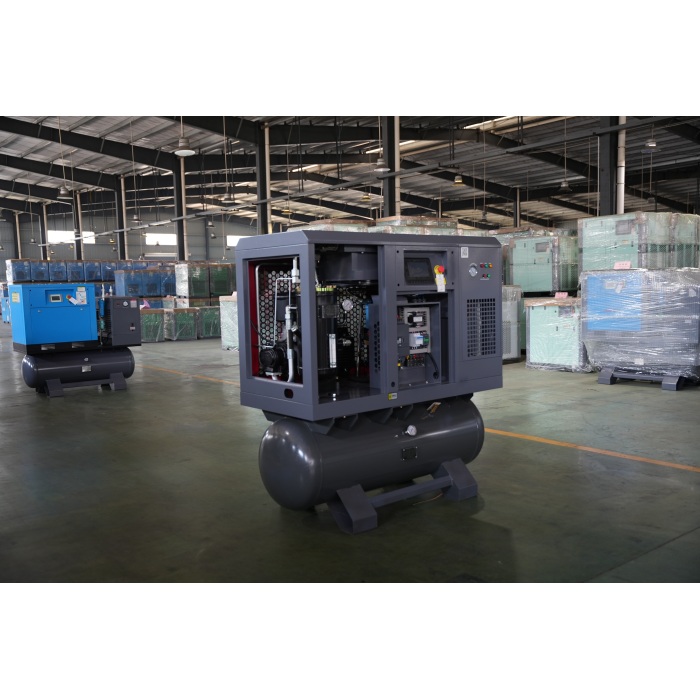

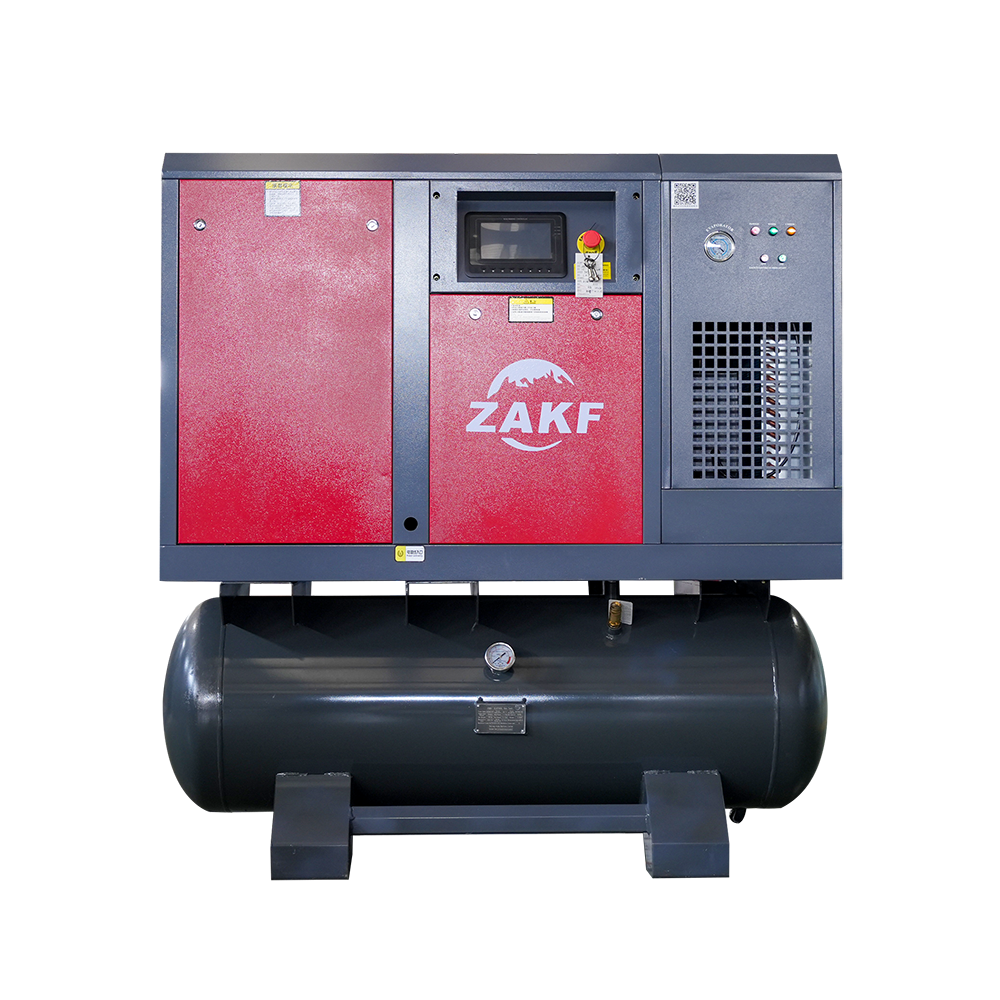

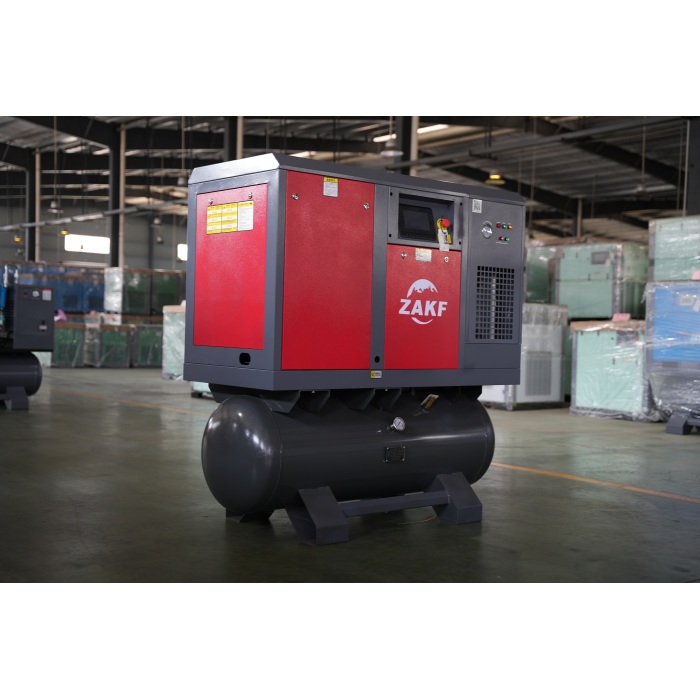

16Bar 30HP Laser Cutting Compressor Model ZAH-30A
30 HP Screw Air Compressor is a high-pressure air compression system designed to meet the needs of high-power laser cutting. It provides a stable air pressure of 16Bar, compatible with medium and high power laser cutting machines (especially models above 6kW), ensuring efficient removal of cutting slag and penetration of materials. The pressure coverage range is as high as 0.8Bar to 16Bar, which is compatible with the cutting needs of metal plates of different thicknesses. The four-in-one integrated permanent magnet frequency conversion host, refrigerated dryer, multi-stage filter (usually more than four stages) and gas tank realize "plug and play", and the volume is reduced by 50% compared to the split type, saving equipment space. It is widely used in high-precision cutting fields such as aerospace precision parts, metal processing, and electronic manufacturing.
The core advantages of the 16Bar laser cutting integrated
Screw Compressor are reflected in the integrated design, operating costs and cutting quality assurance, as follows:
Compact integration: Air compressor, refrigerated dryer, air storage tank, and three-stage filter are integrated into one, reducing pipeline connections and saving more than 30% of equipment space.
Quick deployment: The factory pre-installed design simplifies the installation process and avoids the complexity of on-site commissioning of split equipment.
Energy saving: The IE4 high-efficiency oil-cooled permanent magnet motor (efficiency up to 96-97%) and frequency conversion technology are used, which saves 20-30% energy compared with traditional equipment. The cost of compressed air is only one-tenth of nitrogen (about 0.1-0.2 yuan/cubic meter), which significantly reduces the long-term gas cost.
Maintenance cost control: 8000 hours of ultra-long oil change cycle (fully synthetic lubricant) to reduce downtime frequency. Modular filter element design, oil-gas separator pressure difference ≥ 0.08MPa during quick replacement to avoid fluctuations in cutting quality.
High pressure stability: 16Bar high pressure meets the cutting requirements of thick steel plates (such as 10-25mm carbon steel), and the cross-section flatness is improved by 30%. The whole machine adopts a pressure-resistant design to ensure continuous high-pressure output and avoid cutting interruptions caused by pressure fluctuations.
Gas ultra-clean treatment: three-stage imported filter element (oil removal, water removal, dust removal), oil content ≤0.01ppm, significantly reducing the risk of lens contamination and replacement frequency.
In the fields of fasteners, sheet metal processing, etc., integrated solutions have replaced 90% of split equipment, and the overall efficiency has increased by more than 25%.
16Bar laser cutting
Screw Air Compressor is a core power equipment designed for high-precision laser cutting process. Its application points are as follows:
Auxiliary gas source: as cutting gas (accounting for 80-90% of the total gas consumption), it is used to blow away molten metal slag, cool the cutting area and prevent laser lens contamination.
Thick plate cutting support: 16Bar high pressure can meet the needs of high-power laser equipment to cut thicker steel plates, improve cutting efficiency and cross-section quality.
Equipment power supply: Provides stable power to the laser cutting machine cylinder to ensure the precise movement of mechanical parts.
