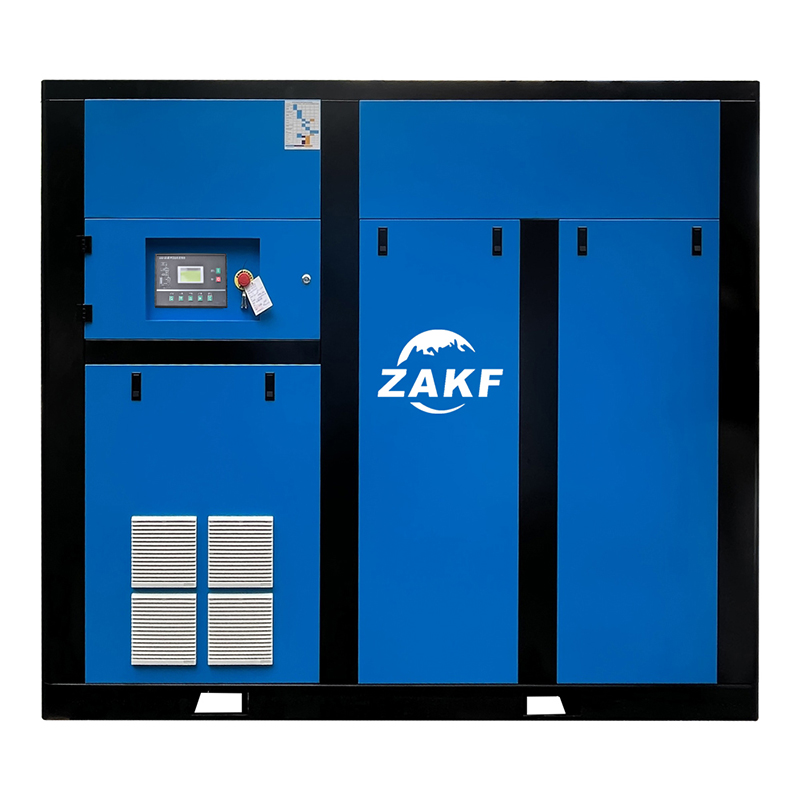

175HP 132KW PM VSD screw air compressor

The 175HP 132KW PM VSD screw air compressor ZAY-175 is a high-performance, energy-saving solution designed for industrial applications that require stable and reliable compressed air. This advanced unit combines the latest permanent magnet synchronous motor technology with two-stage compression technology to achieve an ideal balance of power, efficiency and precision. With a compact size of 2500 x 1470 x 1840 mm and a weight of 2580 kg, the unit is designed to fit seamlessly into modern production environments while providing excellent performance.

A highlight of the 175 HP Screw Air Compressor is the integration of an IE5 energy efficiency-rated permanent magnet motor, which significantly reduces power consumption compared to traditional models. The horizontal two-stage screw air end design optimizes the internal airflow and can increase output power by up to 15% compared to single-stage units of the same capacity. This makes it particularly suitable for industries where a continuous and stable air supply is critical, such as precision manufacturing, chemical processing and automotive production.

175HP permanent magnet variable frequency Screw Type Compressor is a highly efficient pneumatic equipment, integrating permanent magnet synchronous motor (IE5 energy efficiency rating) and two-stage compression technology. Its core advantage lies in the use of horizontal two-stage screw main engine, optimized internal structure, and 15% increase in air output compared with the same level single-stage compressor; with variable frequency control system, 0-100% stepless speed regulation is achieved, accurately matching gas demand, and saving energy by 30%-50%; pressure fluctuation is stable at ±0.01MPa (±0.1bar), meeting the continuous gas supply needs of precision manufacturing, chemical industry and other industries; direct drive design reduces mechanical loss, soft start can reduce 60% of current surge, and noise is controlled below 75dB, but high temperature environment should be avoided to affect the performance of permanent magnets.

The core advantages of 175HP permanent magnet variable frequency screw air compressor are high efficiency, energy saving, intelligent and stable: equipped with IE5 ultra-high energy efficiency permanent magnet synchronous motor (efficiency ≥96%), combined with variable frequency technology, it can achieve 0-100% stepless speed regulation, saving 30%-50% energy compared with industrial frequency models; adopting two-stage compression design, the exhaust volume is increased by 15%, and the pressure fluctuation is controlled within ±0.1bar, which meets the demanding working conditions such as precision manufacturing and chemical industry; soft start reduces 60% of current surge, direct drive reduces mechanical loss, and the whole machine noise is less than 75dB. The intelligent control system supports multi-machine joint control and remote monitoring, but the ambient temperature must be kept within ≤40℃ to ensure the performance of permanent magnet performance.

175HP permanent magnet variable frequency, Ac Compressors are widely used in the industrial field due to its high efficiency, energy saving, intelligent control and other characteristics. It provides a stable gas source (pressure fluctuation ±0.1bar) for automobile spraying and CNC machine tools in the manufacturing industry, and is used for hydrogen compression and gas transportation in the chemical industry (compatible with explosion-proof design); it serves the energy field and is used for oil and gas field pressurization and exploitation (the displacement can be increased by 15% through secondary compression); the food and pharmaceutical industries rely on its oil-free clean gas supply (ISO 8573-1 Class 0 certification). The device achieves 24-hour continuous operation through variable frequency speed regulation (0-100% stepless regulation), and is particularly suitable for production lines such as electronic manufacturing and textiles that require dynamic air volume regulation. The intelligent control system can manage multiple units at the same time (energy saving rate of 30%-50%), but it should be noted that the ambient temperature must not exceed 40°C to protect the permanent magnet.
