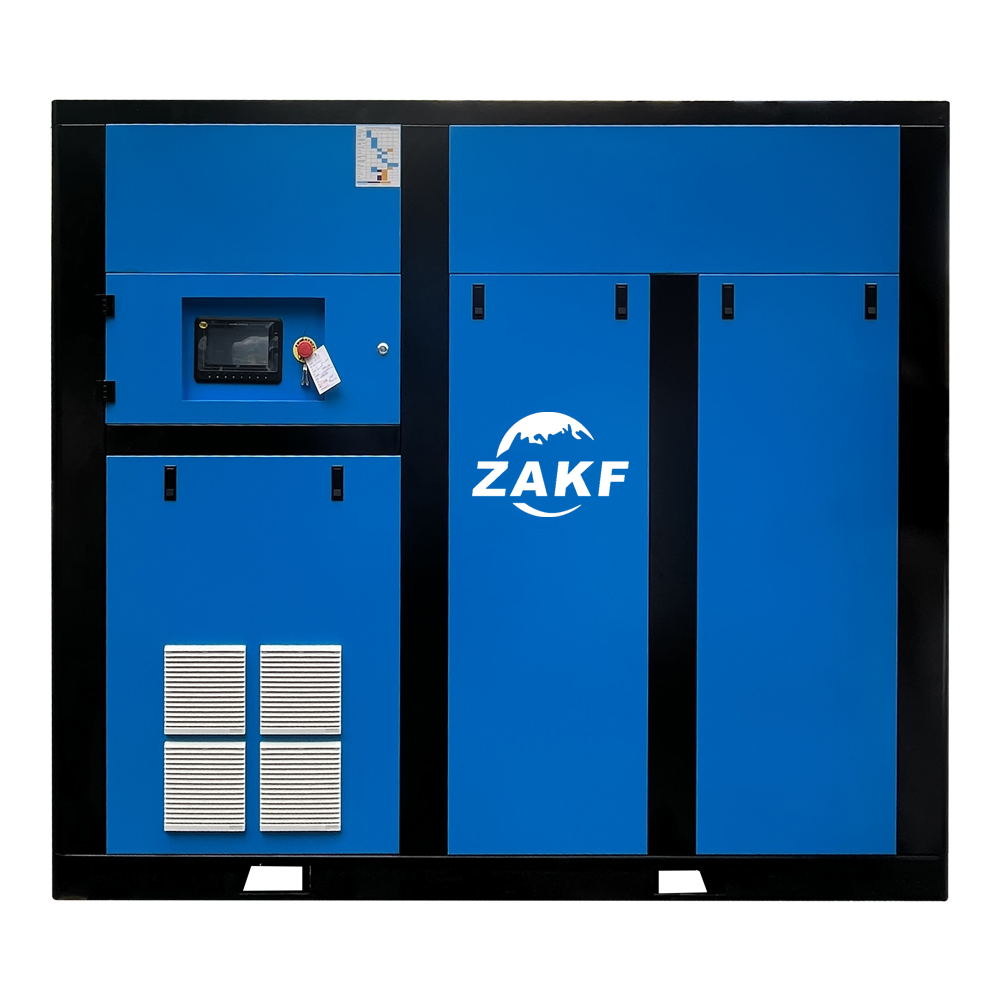

150HP 110KW two stage screw air compressor

150HP 110KW two stage screw air compressor ZAT-150 is a high-performance industrial air compression system designed for continuous high-demand applications. The device uses a two-stage compression mechanism to significantly improve efficiency and pressure output while maintaining energy conservation. The ZAT-150 motor power is approximately 112 kW, and the precision-designed screw rotor can achieve a stable pressure of 7-10 bar (0.7-1 MPa). Its advanced design ensures reliable operation in a variety of industrial environments and is an ideal choice for companies that require stable, high-quality compressed air.

This 150 HP Screw Air Compressor uses two-stage compression technology, which saves 12-18% energy compared to single-stage models. The specific power can reach 5.0 kW/(m3/min), and the pressure is stable within the range of ±0.08 bar; its dual rotor synchronous meshing design, combined with precision bearings, runs smoothly, the vibration value is ≤2.5mm/s, and the noise value is less than 75dB(A). At the same time, the exhaust temperature is effectively controlled by the intercooler (≤ ambient temperature + 10℃); equipped with a three-stage filtration system (oil content ≤ 3ppm) and an intelligent control module, the design life of the whole machine exceeds 60,000 hours, and the comprehensive maintenance cost is reduced by more than 20%.

The 7-10bar 150HP bipolar screw air compressor is a medium- and high-pressure industrial power equipment using two-stage compression technology. A 150 horsepower (about 112kW) motor drives two sets of precision meshing screw rotors to stably increase the air pressure to the range of 7-10bar (0.7-1MPa). Its core advantage lies in the use of a two-stage compression structure (low pressure stage + high pressure stage), combined with an intermediate cooling system, which can reduce energy consumption by 12-18% compared to single-stage models. The typical specific power can reach 5.0 kW/(m³/min), and it also has stable characteristics with noise below 75dB(A) and vibration value ≤2.5mm/s. This model is equipped with intelligent control system (pressure fluctuation ±0.08bar) and three-stage filtration (oil content ≤3ppm) as standard, and is widely used in fields that require continuous high-pressure air source, such as automobile manufacturing, chemical process, mining machinery, etc. The design life exceeds 60,000 hours.

This 7-10bar, 150HP bipolar Portable Air Compressor adopts two-stage compression technology, which saves 12-18% energy compared with single-stage models. The specific power can reach 5.0kW/(m³/min), and the pressure is stable within the range of ±0.08bar; its dual rotor synchronous meshing design, combined with precision bearings, achieves stable operation, vibration value ≤2.5mm/s, and noise value less than 75dB(A). At the same time, the exhaust temperature is effectively controlled by the intercooler (≤ambient temperature +10℃); equipped with a three-stage filtration system (oil content ≤3ppm) and an intelligent control module, the design life of the whole machine exceeds 60,000 hours, and the comprehensive maintenance cost is reduced by more than 20%.

Screw Type Compressor adopts high-efficiency two-stage compression technology (pressure range 0.7-1MPa) and output power 112kW. It is widely used in industrial scenarios such as automobile manufacturing (welding robot drive, painting line air curtain), chemical production (reactor gas pressurization, pipeline purging), mining (rock drilling power, ventilation system), food and medicine (aseptic filling, fermentation aeration). Its two-stage compression structure with intercooler can provide a stable gas volume of 19-23.5m³/min, which is especially suitable for fields that require continuous high-pressure gas source, such as glass manufacturing (bottle preform molding) and electronics industry (PCB cleaning).
