| Product name | 120 HP PM VSD Screw Air Compressor |
| Model | ZAY-120 |
| Product accumulation size（L*W*H MM） | 1800*1400*1540 |
| Product Weight (KG) | 1350 |
| Max Working Pressure | 7/8/10 bar |
| Air Flow | 4.59-15.3 m3/min |
| Motor Power | 90KW/120HP |
| Connection | G 2 |

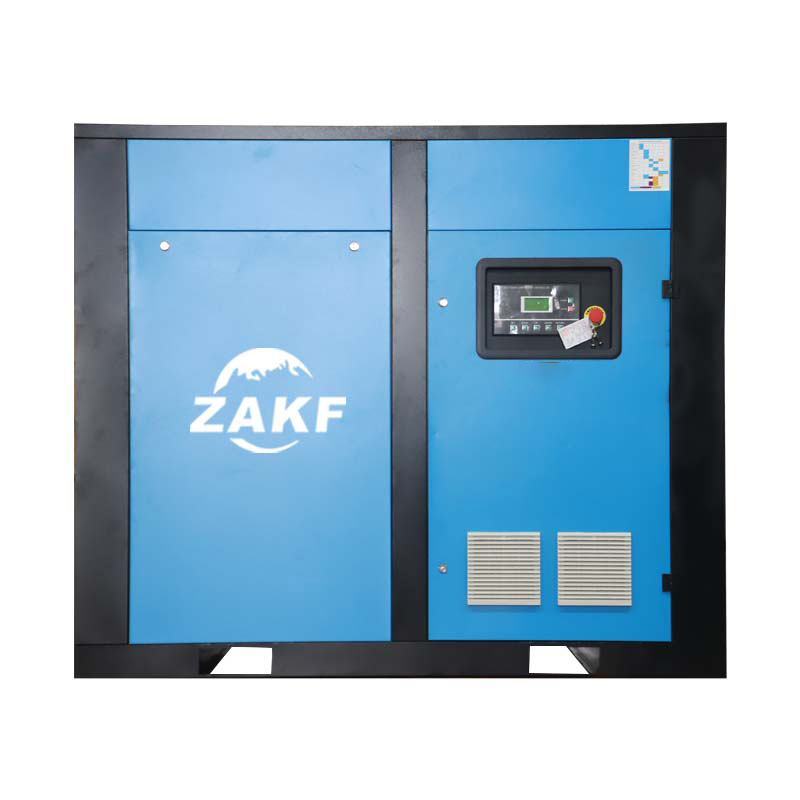

ZAY-120 120HP 90KW PM VSD screw air compressor: high efficiency and energy saving · precise voltage regulation · intelligent drive
120 HP Screw Air Compressor core advantages:
ZAY-120 uses a permanent magnet synchronous motor (IE5 energy efficiency level, efficiency ≥96%) and variable frequency drive (VFD) technology to achieve high efficiency and energy saving and precise air supply: 1. Energy saving 20%-50%: by adjusting the motor speed in real time, accurately matching the gas demand, completely eliminating no-load loss, and improving the comprehensive energy efficiency by more than 30% compared with traditional industrial frequency machines. 2. Air pressure fluctuation ≤±0.02MPa: intelligent closed-loop control ensures stable air supply pressure to meet the needs of highly sensitive scenarios such as precision manufacturing and medical surgery. 3. Ultra-quiet operation (<75 decibels): low-speed frequency conversion technology and optimized chassis design significantly reduce noise pollution, suitable for quiet environments such as laboratories and hospitals.
Screw Air CompressorInnovative technology empowerment:
Rare earth permanent magnet motor: large torque, strong starting force, variable frequency soft start reduces 50% current impact, and extends equipment life.
Intelligent adaptive system: supports remote monitoring of energy consumption and fault diagnosis, and realizes unattended and efficient management.
Compact structure design (1800×1400×1540mm | 1350kg): taking into account industrial-grade durability and space adaptability.
Portable Air Compressor
Air Dryer has wide industry applications:
High-end fields: medical equipment air supply, electronic chip manufacturing, food and pharmaceutical clean air delivery.
Scale manufacturing: automobile production line, textile equipment, pneumatic tool power source.
Heavy industry scene: oil and gas mining boosting, metallurgical equipment, continuous air supply in mines.
ZAY-120 redefines the Industrial Air Compressor standard with cutting-edge permanent magnet variable frequency technology, achieves breakthrough upgrades in energy consumption, stability, and intelligence, and provides compressed air solutions that are both economical and reliable for various industries.
